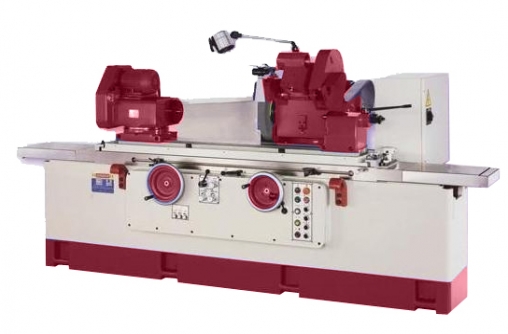

Cylindrical Grinders
Part No. 2589
The cylindrical grinder is a type of grinding machine which is used to shape the outer side of the object. The cylindrical grinder can be used in different types of shapes and the object has a central axis of rotation.
The common use of cylindrical grinders are to manufacture the precise shapes and finishing materials with a superior surface quality and less roughness.
The machine base, columns, cross beam, work table, slide ways, head and all cast parts are of top grade Meehanite Cast Iron. All components are subjected to annealing, which dispels any internal stress and prevents deformation.
-The Z axis is built with tough cast iron box construction designed for heavy loads and analyzed for internal stress, also reinforced with rugged internal rib support.-Ultra wide ladder type cross beam with dual LM linear guide ways ensures rigidity of the spindle and wards off tilting.
-Both X and Y axes are equipped with high precision heavy duty LM guide ways.
-The standard integrated direct drive spindle employs two pairs of ultra-precision taper roller bearings with oil chiller cooling system. Long nose spindles are available as per customer requirements.
| Name | Specifications |
|---|
