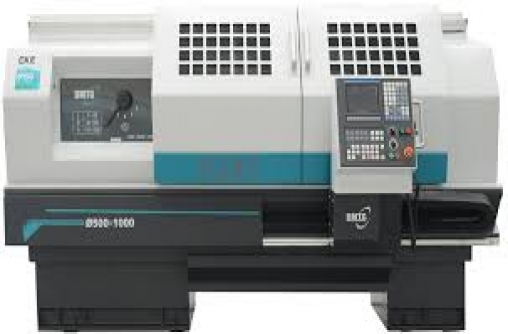

Flat Bed CNC Lathe
Part No. 7635
- All main components, bed, headstock, saddle, plinth, etc., are high quality solid castings.
- Precision ballscrews and highly rigid precision bearing ensure accurate positioning and heavy cutting capability.
- Centralized oil system provides forced automatic lubrication onto ball screws and all mating surface.
- Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db. The CKE-I series, with independent spindle structure, utilize a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.
- Horizontal 4-P automatic indexing toopost is provided as standard, while vertical 4-P toolpost, horizontal 8-P toolpost, quick- change toolpost, etc can also be supplied to suit customer's specific requirements.
- Optional pneumatic or hydraulic chuck and tailstock are available.
- FANUC, SEMENS, GSK, etc control systems can be supplied. E-hand wheel function is also available. Operator adjustable control panel enables convenient tool settings.
- Fully enclosed guards with interlock offer a waterproof and chip-free environment.
- Automatic Forced Lubrication
- Brand New Design Exterior
