Heavy-Duty Automatic Metal Cutting Solution

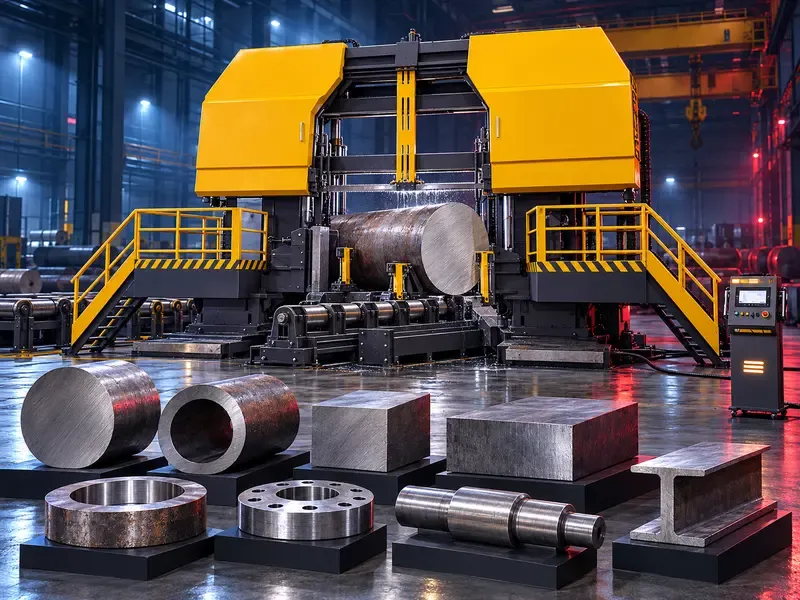

Automatic Gantry-Type Horizontal Bandsaw for Heavy-Duty Cutting
A heavy-duty automatic horizontal bandsaw with a moving gantry structure, engineered for precision cutting of very large and high-tonnage metal workpieces. The system combines automatic material handling, sensor-assisted cutting control and production monitoring for demanding industrial cutting operations.
The automatic gantry-type horizontal bandsaw is designed for industrial applications where conventional bandsaws cannot efficiently handle oversized, long or extremely heavy material. Its gantry configuration allows the cutting system to work around large workpieces while supporting controlled positioning and repeatable cutting to the required length. The supplied configuration is intended for materials with diameters from approximately 500 mm up to 2200 mm, with rectangular cutting capacity up to 2200 x 2400 mm. It can handle material lengths up to 7 m and workpiece weights up to 50,000 kg, making it suitable for heavy steel service centers, forging operations, large machinery manufacturing and other high-tonnage applications. An integrated production management system (MES) can monitor operating data and support cutting-speed optimization using feedback from sensors associated with the cutting tool. Automated clamping and material-handling functions are designed to support safer transfer and unloading of large cut sections without uncontrolled tipping.
What Is a Gantry-Type Horizontal Bandsaw?
A gantry-type horizontal bandsaw is a large-capacity sawing system in which the cutting structure is arranged to accommodate oversized workpieces. It is intended for applications that require large cutting envelopes, heavy material support and automated cutting cycles beyond the practical range of standard workshop bandsaws.
Key Advantages
- Large cutting envelope for oversized round and rectangular metal sections.
- Heavy-duty handling capability for high-tonnage workpieces.
- Automatic cutting cycles for repeatable production cutting.
- Sensor-assisted optimization of cutting conditions according to tool feedback.
- MES-based production monitoring and reporting capability.
- Servo-controlled movement for precise positioning of the cutting assembly and material handling system.
- Automated clamping and controlled unloading designed for large, heavy cut sections.
- Suitable for cutting material to specified lengths in heavy industrial production.
Verified Technical Data from Supplied Information
- Round cutting capacity at 0 deg: up to 2200 mm.
- Rectangular cutting capacity at 0 deg: up to 2200 x 2400 mm.
- Material diameter range stated for the supplied configuration: approximately 500-2200 mm.
- Maximum material length: up to 7,000 mm.
- Maximum workpiece weight: up to 50,000 kg.
- Main drive motor: 30 kW.
- Band size: 17,940 x 80 x 1.6 mm.
- Cutting speed range: 15-80 m/min.
- Feeding stroke: 8,400 mm.
- Machine dimensions: approximately 15,000 x 9,400 x 6,215 mm.
- Machine weight: approximately 92,140 kg.
- Production monitoring: MES software.
- Motion concept: double servo systems for body/bow movement as described in the supplied information.
MES Production Management & Cutting Control
The MES function is intended to provide visibility into machine operating data and cutting activity. Sensor feedback from the cutting tool can be used by the control system to support automatic optimization of cutting speed according to actual cutting conditions. Available monitoring, reporting, connectivity and data fields should be confirmed for the final machine configuration.
Material Clamping & Heavy Workpiece Handling
Large workpieces require controlled clamping and unloading. The machine is equipped with automated vise mechanisms intended to secure the material during cutting and support controlled removal of the cut section. The exact loading, support, transfer and unloading arrangement should be selected according to workpiece geometry, weight and production flow.
Typical Materials & Workpiece Types
- Large steel rounds and billets.
- Large rectangular blocks and sections.
- Forged metal workpieces.
- Heavy machinery components and raw stock.
- Large alloy-steel and industrial metal sections, subject to blade and cutting-parameter selection.
Typical Industries & Applications
- Steel service centers and heavy metal stock processing.
- Forging and foundry support operations.
- Heavy machinery manufacturing.
- Large shaft, billet and block preparation.
- Energy and infrastructure component manufacturing.
- Mining and construction equipment manufacturing.
- Large industrial fabrication and material preparation.
How to Select the Correct Machine Configuration
- Maximum workpiece shape and dimensions: round, square or rectangular.
- Maximum and typical workpiece weight.
- Material grade and hardness.
- Required cut length and length tolerance.
- Production volume and required cycle time.
- Loading, infeed, outfeed and unloading method.
- Blade type and cutting-speed requirements.
- Required automation level and MES/data integration.
- Available factory floor space, foundation and lifting/handling equipment.
- Electrical supply, coolant and other utility requirements.
Information Required for a Quotation
- Workpiece material and grade.
- Round diameter or rectangular dimensions.
- Maximum material length.
- Maximum workpiece weight.
- Required finished cut lengths.
- Estimated cuts per shift/day.
- Required dimensional tolerance and surface expectations.
- Preferred loading/unloading arrangement.
- Factory electrical supply.
- Any MES, reporting or production-system integration requirements.
Technical Data to Confirm Before Order
The following items should be confirmed against the final technical offer before ordering: exact cutting capacity for the selected workpiece geometry, minimum cut-off length, blade specification, motor power, cutting-speed range, feed stroke, servo arrangement, vise configuration, material-support system, coolant/chip-removal system, electrical supply, control interface, MES functions, machine dimensions, foundation requirements and total installed weight.
Questions we are asked
What is an automatic gantry-type horizontal bandsaw?
It is a large-capacity horizontal bandsaw designed to cut oversized and heavy metal workpieces using an automated gantry-style cutting and handling structure.
What is the maximum cutting capacity?
The supplied information states up to 2200 mm for round material and up to 2200 x 2400 mm for rectangular material at 0 degrees. Final capacity must be confirmed for the selected configuration.
How heavy can the workpiece be?
The supplied configuration is described for workpieces up to 50,000 kg. The complete support, loading and unloading system must be engineered for the actual workpiece.
What is the purpose of the MES system?
The MES system supports monitoring and reporting of machine operating data and can work with sensor feedback to assist optimization of cutting conditions.
Can the machine cut material to different lengths?
Yes. The machine is intended for automatic cutting to specified lengths within the limits of the selected feeding and positioning configuration.
How are very heavy cut sections handled?
Automated vise and material-handling mechanisms are used to secure and control the workpiece and cut section. The exact system depends on the material geometry and weight.
What information is needed to select the machine?
Provide the material grade, shape, maximum dimensions, length, weight, required cut lengths, production volume, tolerance requirements and preferred loading/unloading method.
Are all technical specifications fixed for every gantry bandsaw?
No. Capacity, blade, motor, feeding, controls and handling systems vary by configuration and should be confirmed in the final technical offer.
