MDF Melamine Laminate Furniture Production Line

What an MDF melamine furniture line does

The line converts approved designs and melamine faced MDF stock into identified components ready for matched edge treatment boring hardware preparation assembly and packing. Integration should preserve part identity dimensions face orientation decor direction finish and order sequence.

The line is a production system rather than a fixed group of machines. Its value depends on balanced operations accurate data disciplined material flow and verified acceptance criteria.

Products and production scope

Define the intended products such as kitchen cabinets wardrobes office furniture desks shelving or panel doors. Record construction method component families dimensions batch sizes customization level finishes and hardware.

Mixed products can create different bottlenecks. The route for a rectangular cabinet panel may differ from a shaped door or pressed decorative component.

Melamine faced boards and incoming quality

Confirm MDF core type thickness density melamine face construction decor color texture gloss grain direction panel dimensions flatness moisture edge condition protective film storage and permitted defects.

Incoming inspection should prevent warped scratched chipped delaminated incorrectly matched or contaminated panels from entering the automated process.

Design optimization and production data

Software may convert designs into bills of materials cutting patterns labels machining files and reports. Optimization can support better panel utilization but results depend on correct stock data grain direction kerf trim allowances priorities and reuse rules.

Confirm software functions licenses languages file formats machine interfaces revision control backups user permissions and error recovery. Integration claims require a tested data flow.

Cutting nesting and surface protection

Cutting may use a panel saw or CNC nesting process according to geometry volume and flexibility. Verify panel size thickness tooling support vacuum hold down cut quality accuracy cycle offcut policy and control of top and bottom face chipping.

Protect the melamine surface during loading cutting labeling stacking and transfer. Every part should keep its order dimensions decor direction edge instructions drilling program and assembly position.

Edge banding and decor matching

Edge banding applies a verified edge matched to the melamine decor and may include pre milling gluing pressing end trimming top and bottom trimming scraping and buffing. Results depend on board edge quality adhesive edge type temperature feed settings and maintenance.

Define visible edges thickness color texture gloss adhesive system joint appearance finish acceptance and changeover rules. Do not assume one setup processes every board and edge combination.

Boring drilling and hardware preparation

Boring equipment creates construction holes hinge positions dowel patterns connectors grooves or other approved features from verified machining data. Datum strategy orientation tool condition and panel support affect accuracy.

Confirm drilling faces tool layout hole ranges program transfer inspection gauges and compatibility with the selected hardware system.

Lamination boundary and special processes

The standard route may begin with prelaminated boards. Producing the laminated board itself requires a separately verified process for substrate preparation adhesive decorative sheet pressing curing trimming and surface inspection.

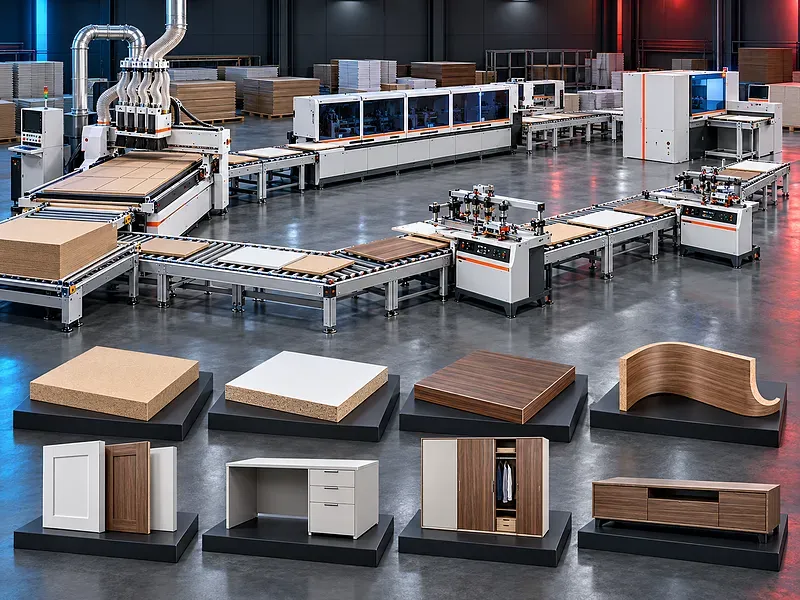

Routers presses hinge drills or other stations may be added only when required. The uploaded graphic illustrates possible board samples and machines but does not prove the final line composition.

Material flow layout and work in process

Plan receiving storage panel feeding cutting buffers edge banding boring inspection assembly packing rework scrap and finished goods as one flow. A compact layout is useful only when access safety maintenance and buffer needs remain adequate.

Confirm aisle widths lifting routes operator positions carts conveyors scanners rack capacity and traceability between stations.

Dust extraction utilities and safety

Define extraction airflow and connections for each machine plus electrical supply compressed air vacuum cooling adhesive handling lighting network and environmental limits. Utilities must support simultaneous operation.

Risk controls should cover rotating tools moving panels clamps conveyors hot surfaces adhesives dust noise electrical energy lifting fire emergency stops guarding interlocks isolation and safe maintenance.

Quality control and traceability

Inspection should cover material identity dimensions squareness cut finish edge adhesion trimming hole position orientation surface damage completeness and order quantity. Define gauges sampling first piece approval correction limits and nonconforming control.

Traceability should connect the design revision panel batch programs labels machine results rework and final assembly.

Output cycle balance and staffing

Line output depends on product mix panel yield cutting patterns edge count drilling density changeovers rejects maintenance material supply buffers operator skill and downstream assembly. A single machine speed does not prove finished furniture capacity.

Staffing should be determined from observed tasks including loading unloading inspection replenishment waste handling assembly supervision maintenance and breaks.

Installation commissioning and training

Site planning should verify access foundations floor load clearances layout utilities extraction network data storage climate material routes and maintenance space. Commissioning should test each machine and the complete data and material flow.

Training should cover software order release operation quality changeover tooling adhesives labels recovery maintenance safety and controlled production records.

Maintenance and lifecycle support

Preventive maintenance should cover cutting tools spindles saws guides belts conveyors edge banding units glue systems drills clamps extraction sensors controls scanners printers and safety devices.

Agree approved tooling consumables adhesives edge materials lubricants filters wear parts software backups licenses manuals service responsibility and spare parts before acceptance.

How to select the correct line

Provide product drawings bills of materials annual and shift mix panel types sizes thicknesses finishes hardware batch sizes target quality output changeovers existing machines factory layout utilities staffing and expansion plan.

The technical review should map the route calculate station loads identify bottlenecks define buffers and propose an acceptance trial using representative orders.

Supplied claims requiring evidence

The supplied description mentions an approximate footprint of ten by twenty metres an area near two hundred square metres output of one hundred to one hundred twenty panels in eight hours a stated panel size of twelve hundred twenty by fourteen hundred forty millimetres and five to six workers.

These figures require an approved layout machine list product definition shift assumptions measured cycle study staffing plan and acceptance test. Claims about improved efficiency panel utilization labor saving easy operation or high return also require documented baselines and calculations.

Technical information to verify

Confirm every machine function capacity working range speed tolerance tooling control software interface label method edge system drill data handling equipment extraction utilities dimensions weight foundation safety options and standard scope.

Also verify layout production assumptions staffing service training warranty consumables spare parts acceptance criteria approved image rights and the exact source and date of every published figure.

Limitations and publishing status

The supplied text and image do not verify the exact line composition footprint production rate staffing requirement software performance efficiency savings return on investment or suitability for a specific factory.

Publication requires approved machine datasheets a controlled layout process routing cycle calculation representative trial safety review image approval bilingual technical review staging review and final content approval.
