CNC Thermal Cutting Solutions for Pipes

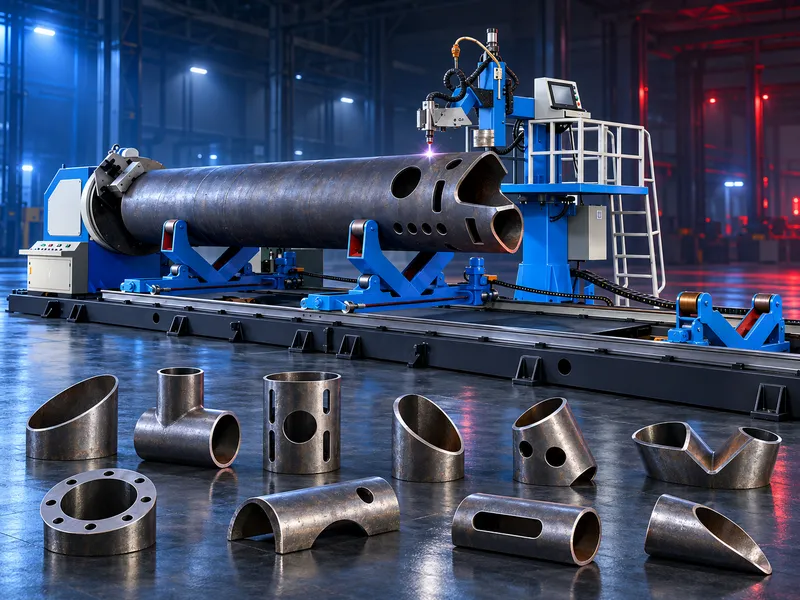

CNC Pipe Flame & Plasma Cutting Machine
CNC cutting solution for metal pipes using flame and plasma cutting processes, designed for automated profile cutting and fabrication applications where controlled pipe rotation and CNC cutting are required.
The CNC Pipe Flame & Plasma Cutting Machine is designed for automated thermal cutting of metal pipes and tubular workpieces. The system combines CNC-controlled cutting movement with pipe support and rotation to process pipe profiles for fabrication and structural applications. According to the supplied product information, CNC flame and plasma cutting technology is used in precision metal sheet and pipe cutting applications and is available in different machine structures, including gantry, desktop and CNC pipe cutting configurations. The appropriate cutting process and machine configuration should be selected according to the pipe material, diameter, wall thickness, workpiece length, required cut geometry and production requirements.
Applications
- Metal pipe and tube fabrication
- Structural steel pipe processing
- Pipe profile cutting
- Fabrication of pipe connections and assemblies
- Steel structure production
- Mechanical equipment fabrication
- General metal fabrication
Main Functions
- CNC-controlled pipe cutting
- Flame cutting process for suitable materials and thicknesses
- Plasma cutting process for suitable conductive metals
- Controlled rotation and support of tubular workpieces
- Automated cutting path execution according to the CNC program
- Processing of pipe profiles and required cut geometries, subject to machine configuration
Flame & Plasma Cutting
Flame and plasma are two thermal cutting processes that can be selected according to the material, thickness and required production conditions. Exact cutting capability depends on the installed cutting system, power source and machine configuration.
How to Select the Correct Machine
- Pipe material
- Pipe outside diameter
- Wall thickness
- Maximum workpiece length
- Required cut shapes and profiles
- Required cutting process: flame, plasma or both
- Production volume
- Required cutting accuracy and finish
- Plasma power source or oxy-fuel configuration
- Loading, support and handling requirements
For technical selection, send the pipe drawing or required cut profile together with material, diameter, wall thickness and workpiece length.
Questions we are asked
What is a CNC pipe flame and plasma cutting machine?
It is a CNC-controlled thermal cutting machine used to cut metal pipes and tubular workpieces using flame and/or plasma cutting processes, depending on the installed configuration.
What is the machine used for?
It is used for pipe and tube fabrication, structural steel processing, mechanical fabrication and applications requiring programmed cutting of tubular workpieces.
Can the machine use both flame and plasma cutting?
The supplied information describes CNC flame and plasma cutting configurations. The exact cutting processes installed on a specific machine must be confirmed from its technical specification.
What materials can be cut?
Material suitability depends on the selected cutting process and power source. The exact material range and thickness capacity should be confirmed for the specific machine configuration.
What pipe diameter can the machine process?
The supplied source does not specify a pipe diameter range. Maximum and minimum diameter must be verified from the exact machine specification.
What cutting thickness can it handle?
Cutting thickness is not stated in the supplied source and depends on the flame or plasma system selected. It should be verified before publication or quotation.
What information is needed to select the machine?
Provide pipe material, outside diameter, wall thickness, maximum length, required cut profiles, production volume and preferred cutting process.
