Sheet Support for Press Brake Bending

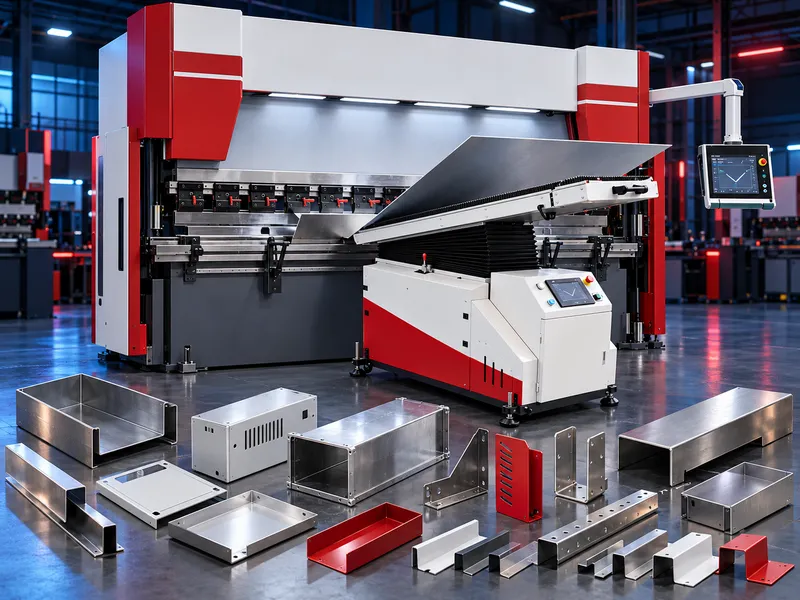

CNC Bending Follower for Press Brake
CNC sheet follower designed to support large sheet metal during press brake bending, following the bending movement to improve handling, reduce manual support requirements and help maintain stable workpiece positioning.
The CNC Bending Follower is an auxiliary sheet-support system for press brakes, developed for bending larger sheet metal where manual handling can be difficult during the bending cycle. The follower reads press brake Y-axis movement data through an optical scale and follows the bending motion, helping support the sheet as it rises during forming. An independent control system allows the unit to operate as a dedicated support device. Its position can be adjusted up, down, forward and backward according to tooling size, workpiece requirements and the press brake Y-axis movement. The support table uses a brush work surface to help protect the sheet surface and reduce the risk of scratching, slipping or dropping during handling. The movable design also allows the unit to be installed, removed and used with compatible press brakes subject to interface and application confirmation. Main content
Applications
- Large sheet metal bending
- Press brake bending of wide or heavy-to-handle sheets
- Sheet metal fabrication
- Metal cabinets and enclosures
- Industrial panels and covers
- General press brake production where additional sheet support is required
Main Functions
- Supports sheet metal during the bending cycle
- Follows press brake Y-axis movement using optical-scale data
- Independent control system
- Up and down adjustment
- Forward and backward adjustment
- Adjustable positioning according to tooling and bending setup
- Brush worktable for sheet surface support
- Movable auxiliary unit for compatible press brakes
How It Works
- Position the bending follower in front of the press brake.
- Adjust the support height and position according to the tooling and sheet size.
- Place the sheet on the support table and align it for bending.
- The follower reads the press brake Y-axis movement through the optical scale.
- .During bending, the support table follows the workpiece movement to support the sheet.
- After the bend, reposition the workpiece or continue with the next programmed bend as required.
Production Benefits
- Reduces the need for continuous manual support of large sheets
- Helps improve handling during bending
- Supports more stable sheet movement through the bending cycle
- Helps protect sheet surfaces through the brush worktable
- Can reduce the risk of sheet slipping or dropping during suitable operations
- Movable configuration can support flexible use across compatible press brakes
Selection & Compatibility
- Press brake model and control configuration
- Y-axis movement and optical-scale interface
- Sheet dimensions and weight
- Tooling height and geometry
- Required support height and travel
- Bending angle and workpiece movement
- Available floor space
- Electrical and control interface requirements
Send the press brake model, sheet dimensions, sheet weight and typical bending application to confirm follower compatibility and the required configuration.
Questions we are asked
What is a CNC bending follower?
It is an auxiliary sheet-support system used with a press brake to support and follow the movement of sheet metal during bending.
Why is a bending follower used?
It is particularly useful when bending larger sheets that are difficult to support manually throughout the bending cycle.
How does the follower synchronize with the press brake?
According to the supplied information, it reads Y-axis movement data through an optical scale and follows the bending movement. Exact interface compatibility should be confirmed for the press brake model.
Can the follower move in different directions?
Yes. The supplied information states that the unit can be adjusted up, down, forward and backward according to tooling size and Y-axis movement.
How does it protect the sheet surface?
The support table uses a brush work surface intended to help prevent scratching and improve sheet support during handling.
Can one follower be used with more than one press brake?
The supplied information describes the unit as easy to install and remove and suitable for sharing between multiple press brakes. Compatibility should be verified for each press brake before use.
What information is needed before selecting a bending follower?
Provide the press brake model, sheet size and weight, tooling information, bending application and required support movement so the correct configuration can be confirmed.
