High-Speed Automatic Metal Bar Cutting
TCT Circular Saw Machines for High-Speed Precision Bar Cutting

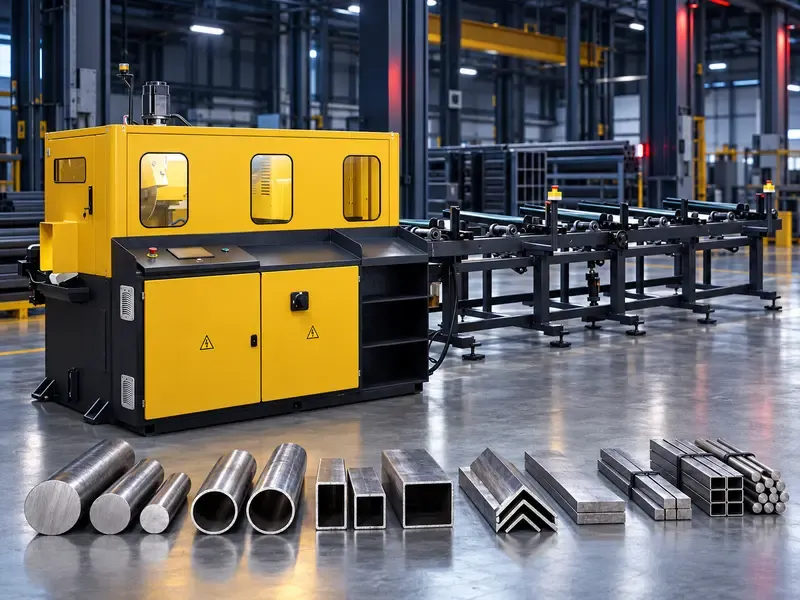

Automatic TCT circular saw machines for fast, repeatable cut-to-length processing of solid metal bars. Designed for continuous production, they combine rigid machine construction, controlled material feeding, automatic loading options and programmable cutting lengths for efficient industrial sawing.
TCT circular saw machines are designed for high-speed, high-precision cutting of solid metal bars in repetitive production environments. Their rigid construction and controlled feeding system support consistent cut lengths and stable operation across long production runs.
The range can process ferrous and non-ferrous materials, including carbon steel, alloy steel, stainless steel and aluminium, subject to the correct machine configuration, TCT blade grade, tooth geometry, cutting speed and lubrication parameters.
Automatic loading and feeding, programmable cut lengths, hydraulic clamping, chip removal and micro-lubrication can reduce manual handling and support efficient blank preparation for downstream forging, machining or component production. Exact equipment and performance depend on the selected machine configuration.
What Is a TCT Circular Saw Machine?
A TCT circular saw uses a tungsten-carbide-tipped circular blade to cut solid metal stock to programmed lengths. In automatic production configurations, bar loading, feeding, clamping, cutting and repeated length positioning can be integrated into a controlled cycle. The machine is intended primarily for straight 90-degree cut-to-length production of solid bars within the capacity of the selected configuration.
Key Production Advantages
- High-speed repetitive cutting for production batches.
- Programmable cut lengths for repeatable blank preparation.
- Servo-controlled material feeding for controlled positioning.
- Rigid construction to support stable cutting conditions.
- Automatic loading options for continuous bar processing.
- Hydraulic clamping to secure material during cutting.
- Chip-removal systems to manage swarf around the cutting zone.
- Micro-lubrication to support blade operation with suitable cutting parameters.
- Reduced manual material handling compared with basic manual sawing workflows.
Suitable Materials
- Carbon steel solid bars
- Alloy steel solid bars
- Stainless steel solid bars
- Aluminium solid bars
- Other ferrous or non-ferrous industrial metals when supported by the selected blade and cutting parameters
Typical Applications
- Steel service centers and stock preparation
- Automotive component production
- Forging blank preparation
- Machining and CNC production facilities
- High-volume cut-to-length bar processing
- General industrial metal component manufacturing
Typical Automatic Working Cycle
- Load the bar stock manually or through the selected automatic loading system.
- Feed the material to the programmed cutting length.
- Clamp the material hydraulically.
- Run the TCT cutting cycle using the selected blade and parameters.
- Remove chips and apply the configured micro-lubrication during operation.
- Release or discharge the cut blank and repeat the programmed cycle.
How to Select the Correct TCT Saw
- Define material type and exact grade.
- Specify round or square solid-bar cross-section and size range.
- Specify incoming bar length and required finished cut lengths.
- Define required production quantity or cuts per shift.
- Confirm cut-length tolerance and required surface finish.
- Select the correct TCT blade diameter, grade and tooth geometry for the material.
- Define loading method and whether automatic bar loading is required.
- Confirm feeding stroke and repeated-feed strategy for long cut lengths.
- Confirm chip-removal and micro-lubrication requirements.
- Confirm plant voltage, frequency, available floor space and material-handling layout.
Information Required for Quotation
- Material type and grade
- Round or square bar size
- Solid bar confirmation
- Incoming stock length
- Required cut lengths
- Required quantity / production rate
- Required cut-length tolerance
- Required cut-face quality
- Preferred loading method
- Factory electrical supply
- Available installation space
Technical Data to Confirm for the Selected Configuration
- Exact cutting capacity by material shape
- Applicable material grades
- TCT blade diameter and blade specification
- Spindle / blade speed range
- Main saw motor power
- Feed servo specification
- Feeding stroke and repeat-feed capability
- Cutting length range and positioning accuracy
- Cycle time for representative material
- Hydraulic clamping configuration
- Automatic loader capacity and stock length
- Chip conveyor / chip removal arrangement
- Micro-lubrication system
- Electrical supply
- Machine dimensions and weight
- Included equipment and optional accessories
Questions we are asked
What is a TCT circular saw machine?
It is a production sawing machine that uses a tungsten-carbide-tipped circular blade to cut solid metal bars to controlled lengths, with automatic configurations integrating feeding, clamping and repetitive cutting.
What materials can be cut?
The supplied range is intended for materials such as carbon steel, alloy steel, stainless steel and aluminium. Compatibility and performance depend on the exact material grade, blade and cutting parameters.
What is the available round-bar capacity?
The supplied category range covers round solid bars from Ø10 to Ø153 mm. The exact capacity depends on the selected machine configuration.
Can it cut square solid bars?
Yes. The supplied range includes square solid-bar capacities from 10 × 10 mm to 110 × 110 mm, depending on configuration.
Does the machine make angle cuts?
The supplied range is specified for 90° straight cutting. Do not assume miter cutting unless it is confirmed for a specific configuration.
How long can the incoming bars be?
Automatic processing of bars up to 6,000 mm is available depending on the loading system.
What determines cutting speed and surface quality?
Material grade, cross-section, TCT blade selection, tooth geometry, cutting parameters, lubrication and the selected machine configuration all influence performance.
What should I send to request a quotation?
Send the material grade, bar shape and size, incoming length, required cut lengths, quantity or production rate, tolerance requirements and factory electrical supply.
