Automatic Feeding, Punching, Bending & Cutting System

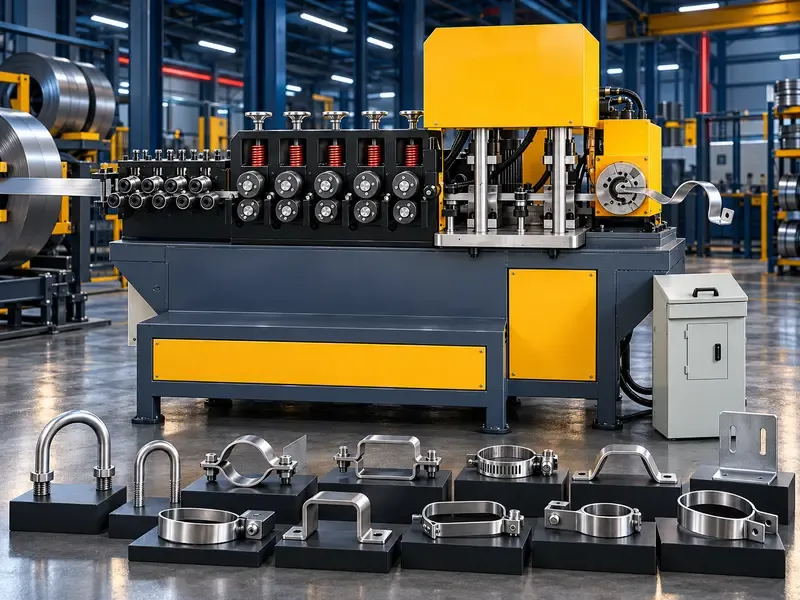

CNC Flat Iron Hoop Forming, Punching & Cutting Machine
An automatic production system for forming flat metal strip into U-hoops, pipe clamps, brackets and related formed parts. The machine integrates programmable feeding, bending/forming, punching and cut-off operations to reduce manual handling and support repeatable production.
The CNC flat iron hoop forming machine combines multiple production steps in one automated line. Flat strip is fed into the machine, positioned according to the programmed job, processed through the required punching and forming sequence, and cut to produce the finished component. It is intended for manufacturers producing U-hoops, pipe clamps, support brackets and similar parts from flat metal strip. The integrated process can reduce separate handling between conventional feeding, punching, bending and cutting operations. Machine configuration must be selected according to the strip material, width and thickness, finished geometry, hole pattern, bend radius, required production rate and electrical supply. The supplied product information references configurations for flat iron up to 100 mm wide and a 380 V / 24 kW machine; these values should be confirmed against the exact machine offered before quotation or publication as fixed specifications
Integrated Production Process
- Automatic strip feeding and positioning
- Straightening / guiding as required by the selected configuration
- Hydraulic or powered punching according to the required hole pattern
- Optional stamping or logo marking when included in the machine configuration
- CNC-controlled bending / hoop forming
- Automatic cut-off of the completed part
- Repeat cycle according to the programmed quantity
Typical Products
- U-hoops and U-shaped clamps
- Pipe clamps and pipe support bands
- Pole and utility brackets
- Flat-bar retaining bands
- Mounting straps and formed brackets
- Custom formed flat-strip components subject to tooling and machine configuration
Suitable Materials
Depending on the selected machine, tooling and forming requirements, applications may include flat iron, carbon-steel strip and stainless-steel strip. Exact material grade, tensile strength, width and thickness must be checked before machine selection.
Key Functions & Advantages
- Combines feeding, punching, bending/forming and cutting in one production system
- Programmable operation for repeated part production
- Reduces manual transfer between separate fabrication processes
- Supports different hoop and clamp geometries through suitable programming and tooling
- Hydraulic punching and cut-off can be configured for the required part design
- Suitable for batch and repetitive production of formed flat-strip components
- Tooling can be selected according to hole pattern, bend geometry and finished product
Application Industries
- Pipe support and clamp manufacturing
- Construction hardware and metal accessories
- Utility pole and infrastructure hardware
- HVAC and MEP support components
- Agricultural and general machinery components
- Metal fabrication and industrial component production
Machine Selection Criteria
- Flat-strip material and grade
- Strip width and thickness
- Finished hoop / clamp dimensions
- Required bend shape and bend radius
- Hole quantity, diameter, spacing and punching sequence
- Need for stamping or logo marking
- Required cut-off method and finished edge requirement
- Target pieces per minute / shift
- Required feeding accuracy and repeatability
- Electrical supply and hydraulic requirements
- Required tooling set and changeover method
- Coil or strip feeding arrangement and upstream equipment
Information Required for Quotation
- Drawing or sample of the finished hoop / clamp
- Material type and grade
- Strip width and thickness
- Overall finished dimensions
- Bend radius / geometry
- Hole size, quantity and positions
- Required stamping or logo details, if any
- Required production quantity or target output
- Available electrical supply
- Photos or video of the current production process, when available
Important Configuration Note
Published online references show different ranges for strip size, power and production speed. These figures should not be combined into one fixed specification. Final technical data must be confirmed for the exact machine, tooling and finished component before order.
Questions we are asked
What does a CNC flat iron hoop forming machine do?
It automatically feeds flat strip and performs programmed operations such as punching, bending/forming and cutting to produce hoops, clamps, brackets and similar components.
What products can be manufactured?
Typical products include U-hoops, pipe clamps, support bands, pole brackets and other formed flat-strip components, subject to the required geometry and tooling.
Can the machine punch holes before bending?
Punching can be integrated into the production sequence. The hole pattern, diameter and position must be defined when selecting the tooling and machine configuration.
Can it process stainless steel?
Selected configurations may process stainless-steel strip, but the exact grade, width and thickness must be checked against the machine capacity and tooling.
Is the machine fully automatic?
The supplied description presents an automatic integrated process. The exact level of automation, loading arrangement and discharge method should be confirmed for the selected configuration.
How do I select the correct machine?
Provide the finished-part drawing, material grade, strip width and thickness, bend geometry, hole pattern, target output and electrical supply. These determine machine capacity and tooling.
Can the machine add a logo or stamped mark?
Stamping or marking can be included on suitable configurations. The required mark, location and tooling must be specified before quotation.
Is 24 kW and 380 V standard for every machine?
No. These values appear in the supplied product information for a particular configuration and should be verified for the exact machine offered.
