Metal Filter Component Manufacturing Solutions

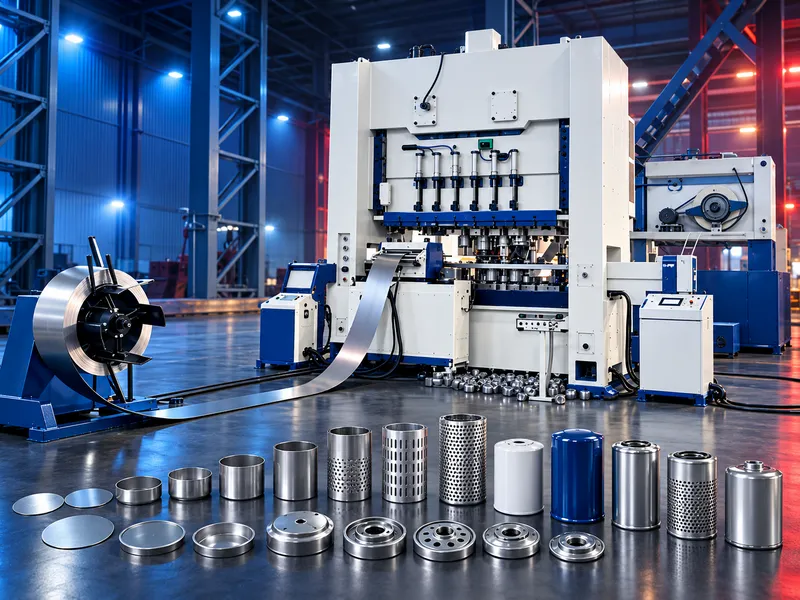

Automatic Air Filter Metal Parts Making Production Line
Integrated production solution for manufacturing metal components used in air filters, combining power press punching with coil feeding, decoiling, dedicated tooling, automated handling and assembly equipment according to the required filter design
The Automatic Air Filter Metal Parts Production Line is designed for manufacturing formed and punched metal components used in air-filter and metal-filter assemblies. The line can be configured around a power press or punching machine with material feeding, decoiling, dedicated moulds and downstream handling or assembly equipment.
Depending on the required filter component, the production concept can combine a decoiler, feeder, power press, mould, manipulator / robotic handling system and assembly line into one coordinated manufacturing solution.
The final configuration should be selected from the filter design, metal material, strip or coil dimensions, component geometry, required forming operations, target output and assembly method. Exact machine capacities must be confirmed for the selected line.
Typical Line Configuration
- Coil decoiler / uncoiler
- Automatic material feeder
- Power press / punching machine
- Dedicated punching and forming moulds
- Manipulator, iron-hand or robotic handling system
- Transfer between forming stages where required
- Assembly equipment / assembly line
- Finished-part collection and handling
Main Production Functions
- Automatic feeding of metal strip or coil
- Punching and blanking of filter metal parts
- Forming of covers, shells or other metal filter components according to tooling
- Repeatable production using dedicated dies and moulds
- Automated part transfer when equipped with a manipulator or robot
- Integration of forming and assembly stages according to the required product
Suitable Applications
- Air filter metal covers and housings
- Metal filter components
- Cylindrical filter metal parts where supported by the selected tooling and line configuration
- Stamped and formed sheet-metal filter components
- Filter manufacturing and assembly lines
How to Select the Correct Line
- Filter type and final product drawing
- Metal material and grade
- Coil / strip thickness and width
- Required component dimensions and geometry
- Required punching and forming operations
- Required press tonnage and stroke — to be verified
- Production output target
- Level of automation required
- Assembly operations after forming
- Required mould and tooling configuration
Recommended Technical Enquiry
Send the filter drawing or sample, metal material, sheet/coil thickness, component dimensions and required production output so the appropriate press, feeder, decoiler, mould and automation configuration can be selected.
Questions we are asked
What is an automatic air filter metal parts production line?
It is an integrated manufacturing solution for producing punched and formed metal components used in air filters, typically combining a power press with coil handling, feeding, dedicated tooling and optional automated handling and assembly equipment.
What equipment can be included in the line?
The supplied description identifies a power press, feeder, decoiler, mould, manipulator / iron-hand / robot and assembly line as possible parts of the complete solution.
Can the line manufacture cylindrical filter parts?
The product description refers to metal filters and cylinder-making applications. Actual cylindrical-part capability depends on the selected forming process, tooling and line configuration and should be confirmed from the final product drawing.
Is the mould included in the production solution?
Dedicated moulds are part of the proposed line concept. The exact mould design must be developed or selected according to the required filter component.
Can the line operate automatically?
The line can be configured with automatic feeding and automated handling equipment. The actual automation level depends on the selected equipment and production process.
What information is needed to configure the line?
Provide the filter or component drawing, material, thickness, dimensions, required operations, target production output and preferred automation level.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
