Automatic CNC Wire Forming

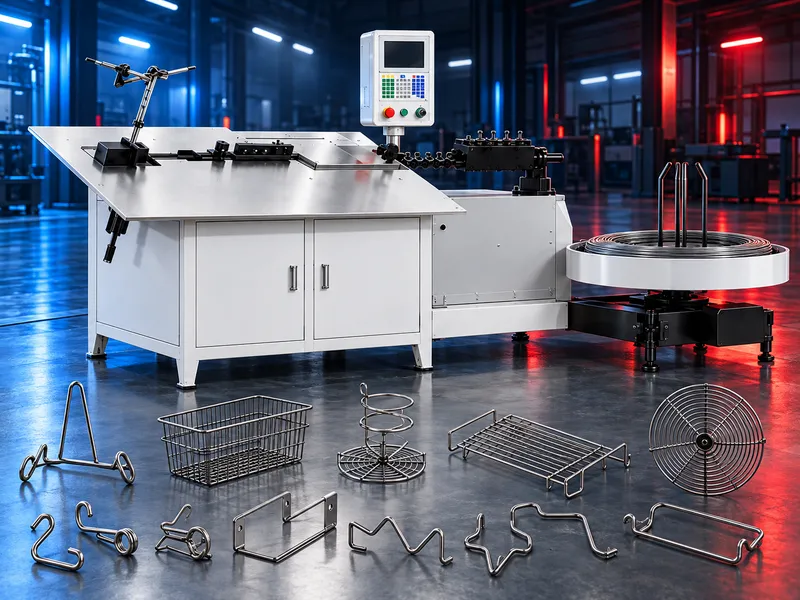

Fully Automatic 2D CNC Wire Bending & Forming Machine
Fully automatic CNC wire bending and forming solution for producing 2D wire hooks, hangers, rings, frames, baskets, shelves and custom wire components directly from coil.
The Fully Automatic 2D CNC Wire Bending Machine integrates wire straightening, feeding and CNC-controlled bending into one automated production system for manufacturing a wide range of two-dimensional wire components. Wire is automatically fed from the coil through the straightening and feeding system before reaching the CNC bending unit, allowing programmed wire shapes to be produced in a continuous manufacturing process. The CNC control system allows operators to set bending angles, lengths, feeding parameters and operating sequences according to the required product design and wire dimensions. The machine is suitable for manufacturers of wire products, housewares, furniture accessories, storage systems, display fixtures and industrial wire components requiring repeatable automated production.
Automatic Production Process
- Wire is supplied from the coil.
- The wire passes through the straightening system.
- The feeding mechanism advances the programmed wire length.
- The CNC bending unit forms the required angles and geometry.
- The programmed sequence is repeated to produce the required component.
- The finished wire component proceeds to the next production stage as required.
Key Functions
- Automatic wire feeding
- Automatic wire straightening
- CNC-controlled bending
- Programmable bending angles
- Programmable feeding lengths
- Adjustable operating parameters
- Touchscreen control interface
- Servo-driven bending mechanism
- Continuous production from wire coil
- Production of different programmed 2D wire shapes
Wire Products & Applications
- Wire hooks
- Metal hangers
- Wire rings
- Wire frames
- Wire baskets
- Storage baskets
- Shelving components
- Display racks
- Supermarket display components
- Furniture wire components
- Kitchenware components
- Household wire products
- Industrial wire parts
- Structural wire accessories
- Automotive wire components
- Car seat frame components
- Custom 2D wire products
CNC Wire Forming
The CNC control system allows different product geometries to be programmed by defining parameters such as bending angles, wire lengths and operating sequences.
This makes the machine suitable for manufacturers producing multiple wire products where product dimensions and bending patterns can change between jobs.
Automatic Straightening & Feeding
The straightening system prepares wire supplied from the coil before bending, while the feeding mechanism advances the required programmed length into the bending section.
Combining these processes into one system allows wire to move from coil feeding to forming within an automated production sequence.
CNC Bending System
The servo-driven bending mechanism controls the bending movement according to the programmed product geometry.
Different combinations of straight sections and bends can be programmed to manufacture various two-dimensional wire components.
Typical Industries
- Wire forming
- Housewares
- Kitchenware
- Furniture manufacturing
- Storage systems
- Retail display equipment
- Hardware manufacturing
- Industrial components
- Automotive components
- Metal fabrication
From Coil to Formed Component
Wire Coil → Straightening → Feeding → CNC Bending → Formed Wire Component
The formed component can then proceed to additional production operations such as welding, assembly or finishing when required by the final product.
How to Select the Correct 2D Wire Bending Machine
- Specify the wire material.
- Define the minimum and maximum wire diameter.
- Provide drawings or samples of the required products.
- Specify the maximum finished component dimensions.
- Identify the required bends and geometry.
- Define the required production output.
- Specify whether round, flat or other wire profiles are required.
- Confirm any downstream welding or assembly operations.
- Confirm the final machine capacity and configuration before ordering.
Questions we are asked
What is a fully automatic 2D CNC wire bending machine?
It is an automated wire-forming system that combines wire feeding, straightening and CNC-controlled bending to manufacture programmed two-dimensional wire components from coil.
What products can be manufactured with a 2D wire bending machine?
Applications include hooks, hangers, rings, frames, baskets, shelves, display components, furniture accessories and various custom industrial wire parts.
How does the machine work?
Wire is fed from a coil, straightened, advanced to the programmed length and then formed by the CNC-controlled bending mechanism according to the required geometry.
Can different wire shapes be programmed?
Yes. The CNC system allows different bending angles, lengths and operating sequences to be programmed according to the required product design.
Is the machine suitable for continuous production from wire coils?
Yes. The system is designed to combine coil feeding, straightening and bending within an automated production sequence.
Can the formed parts be used in an automated production line?
The formed wire components can proceed to subsequent operations such as welding, assembly or finishing where the overall production process is configured accordingly.
What information is required to select the correct machine?
Provide the wire material and diameter, product drawings or samples, finished dimensions, bending geometry, required output and any downstream production operations.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
