Pneumatic Lock Seam Closing Machine for HVAC Ducts

What the machine does

The machine closes a compatible longitudinal lock seam after the mating sheet edges have been formed and engaged. Pneumatic motion completes the joint for later sealing inspection and installation.

The result depends on seam geometry engagement alignment duct support tool condition air stability and inspection.

Prepared seam compatibility

Both mating profiles must be formed to the approved dimensions before closing. Incorrect allowance damaged edges or partial engagement can create an irregular or open seam.

Confirm seam type overlap direction and compatibility with the installed closing tool and upstream lock former.

Pneumatic closing cycle

Compressed air drives cylinders that move clamps and the closing mechanism. The cycle should apply enough controlled force to close the joint without crushing or twisting the duct panel.

Verify clamp close return and release stages and the approved pressure and timing for each seam and material.

Air supply and preparation

The machine requires an air compressor or plant air connection with adequate pressure flow dryness and cleanliness. Filters regulators drains and lubrication should follow the supplied pneumatic design.

Confirm air consumption connection size pressure range filtration moisture control and response to pressure loss before installation.

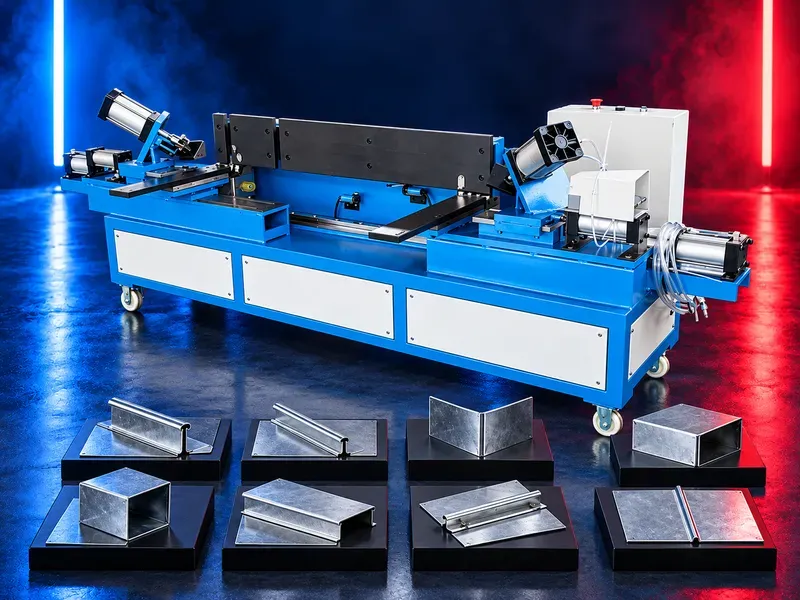

Horizontal machine layout

A horizontal layout supports the duct along the closing path and can provide direct visibility of tooling cylinders guides and controls. It also requires clear floor area around the full duct length.

Verify loading side discharge side working height support extensions and service access for all machine components.

Closing tool and guides

The closing tool must match the seam profile and guide it without reopening twisting or marking the joint. Tool straightness contact geometry and wear affect closure consistency.

Verify tool material replacement adjustment wear limits lubrication and availability of additional seam tooling.

Duct support and positioning

The duct section should be supported square to the closing path and held against a repeatable reference. Large thin or flexible panels may need adjustable stands or additional handling support.

Confirm minimum and maximum duct dimensions support spacing reference stops and unloading method.

Materials and thickness

Provide sheet grade coating thickness hardness and surface finish with the formed seam drawing. Galvanized sheet stainless steel aluminium or other materials require separate pneumatic force tooling and sample confirmation.

The thickness range must be verified for the exact seam and duct geometry and should not be generalized across materials.

Duct length and clearance

The usable closing length support arrangement and machine clearance must accommodate the complete seam and duct cross section. Flanges reinforcement bends and transitions can affect access.

Review the largest and smallest representative straight and special sections before selection.

Seam tightness and sealing

Mechanical closure shapes the seam but does not alone guarantee the required leakage class. Sealant gasket corner treatment and workmanship may also be required.

Define dimensional visual and leakage related acceptance criteria and the sealing sequence before production release.

Pneumatic hydraulic and electric alternatives

Pneumatic hydraulic and electric seam closers differ in force cycle behavior utilities noise maintenance mobility and control options. Pneumatic actuation can be practical where a stable air supply already exists.

Compare verified closing performance and total operating requirements rather than selecting only by drive type.

Integration in duct production

The machine normally follows cutting beading notching TDF flange forming folding and lock forming. Clip cutting corner fitting sealing and final inspection may follow closing.

Coordinate blank allowances seam orientation and handling so the prepared duct reaches the closer without damage or reversal.

Productivity and labor

Output depends on duct size thickness seam length loading support air recovery cycle time unloading inspection and the capacity of surrounding operations.

Measure accepted closed ducts per shift during representative trials rather than relying on general efficiency or labor saving claims.

Quality control

Acceptance should cover complete closure straightness continuity surface marking panel distortion seam ends corner fit and compatibility with sealing and installation.

Inspect the first duct after tool adjustment material change air setting change or maintenance using approved gauges and tests.

Common process risks

Low air pressure moisture leaks poor seam engagement inadequate support worn tooling or misalignment can cause incomplete closure variation scratches twist or leakage paths.

Stop and correct air supply upstream forming and closing settings when the seam falls outside acceptance criteria.

Safety and operator protection

The machine contains pneumatic cylinders moving tools clamps pinch points stored air energy and sharp sheet edges. Guards interlocks emergency stops air isolation and controlled access should follow the approved risk assessment.

Safe procedures must cover loading support engagement trial cycles unloading jam recovery air isolation pressure release cleaning tooling work and maintenance.

Installation and site readiness

Site preparation should confirm level floor electrical supply air compressor capacity pipe size air treatment working clearance duct supports lighting noise control and service access.

Provide safe routes for unfinished and closed ducts and protect hoses and connections from impact or trip hazards.

Training maintenance and lifecycle support

Training should cover seam identification engagement support air settings quality checks safe recovery isolation drainage and daily inspection.

Preventive maintenance should address cylinders seals valves hoses fittings filters regulators drains guides tools sensors guards clamps controls and emergency devices. Prepare approved spare parts and consumables.

How to select the correct machine

Start with seam drawings materials thickness range closing length minimum and maximum duct sizes product mix shift target leakage requirement air system support method and layout.

Selection should confirm tooling pneumatic force cycle control clearance handling integration maintenance skills service support and representative closing trials.

Technical information requiring verification

Verify compatible seam profiles material types thickness range maximum closing length duct clearance cylinder force air pressure flow and consumption cycle time tooling controls accuracy noise electrical load connection data dimensions and total weight.

Confirm supports guards air preparation leakage test basis installation commissioning training warranty service scope spare tooling parts and acceptance tests from approved documentation.

Publishing status

This page describes the machine category process and selection logic. Exact length thickness air demand speed output leakage performance materials controls options standards and commercial commitments require an approved data sheet and technical review before publication.
