ROUND HVAC DUCT ELBOW FORMING

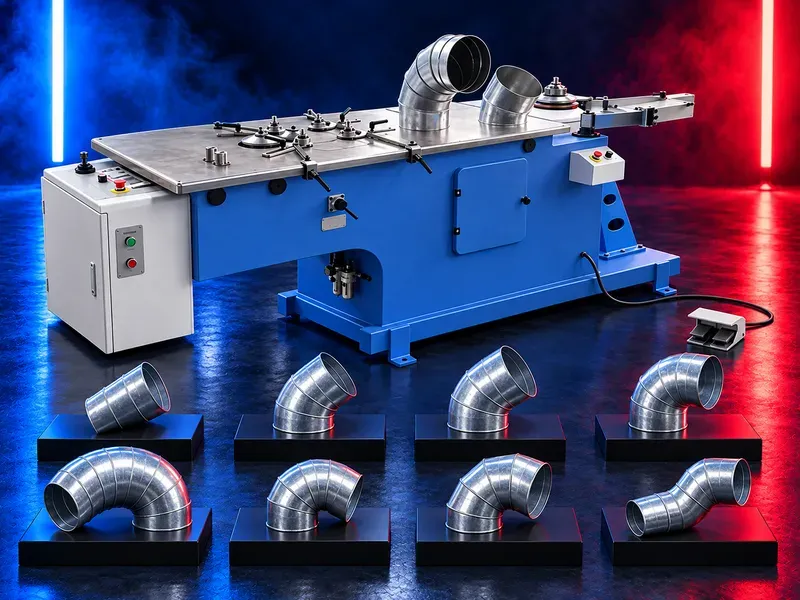

Hydraulic Round Duct Elbow Forming Machine
A hydraulic round duct elbow machine forms compatible edges on prepared elbow segments so they can be joined into round HVAC duct elbows. A dual workstation arrangement can support two tooling setups when the segment geometry material thickness seam system production mix and operating sequence are verified.
The operator presents a prepared round elbow segment to the matched rollers or forming tools. Hydraulic movement controls the forming action that prepares the segment edge for the specified elbow joint. Two workstations may reduce repeated tooling changeover when each station is assigned an approved edge operation or size range. Safe handling and correct setup remain necessary at both stations. Claims for higher production speed faster flanging improved seam quality hardened high grade rotating parts near maintenance free operation or universal integration with spiral duct production require approved technical evidence and representative trials.
What the machine does
The machine forms the edges of prepared round duct elbow segments for a compatible joining process. Exact operations may include flanging beading or seam preparation depending on the installed tools.
Confirm whether final seam closing is completed on this machine or by a separate elbow seaming operation.
Elbow design and segment preparation
Provide the elbow diameter angle centerline radius number of segments segment drawings seam allowance and end connection details. Cutting accuracy and segment roundness affect later forming and assembly.
The machine cannot correct an incorrect segment pattern or missing joining allowance.
Dual workstation arrangement
Two workstations can hold different approved tools or support consecutive edge operations without changing one setup each time. The actual benefit depends on part flow station assignment and the required size mix.
Verify independent controls guarding clearances simultaneous use restrictions and safe transfer between stations.
Hydraulic forming cycle
Hydraulic power controls tool engagement force and travel during edge forming. Pressure flow speed and return should remain stable throughout the approved material and diameter range.
Confirm clamp engage form return release and fault recovery stages and the method for isolating stored hydraulic energy.
Roller profile and tooling
Roller profile controls the formed edge geometry and strongly affects fit and seam consistency. The tool must match material thickness segment curvature and the intended joining system.
Verify tool identification adjustment alignment wear limits replacement sharpening if applicable lubrication and safe handling.
Materials and thickness
Material grade coating thickness hardness temper and surface condition influence forming force springback marking cracking and tool wear. Galvanized steel stainless steel aluminium and other materials require separate confirmation.
Do not generalize diameter or thickness capacity across different materials or seam types.
Segment support and positioning
The curved segment should remain square to the tool and supported without flattening twisting or damaging the edge. Larger segments may require adjustable supports or assisted handling.
Confirm working height reference points feed direction minimum and maximum segment geometry and unloading method.
Seam and assembly quality
Inspect formed edge dimensions continuity roundness surface marking cracks coating damage fit between mating segments and the completed elbow geometry. Acceptance should follow approved drawings and a representative assembly trial.
A well formed edge does not alone guarantee an airtight or structurally acceptable elbow.
Integration with spiral duct production
Spiral duct production may supply matching straight round duct while elbow segments require their own cutting and forming process. Diameter seam system connectors material and project standards must remain consistent across the assembly.
Coordinate segment cutting edge forming seam closing end forming sealing inspection and fitting connection.
Productivity and changeover
Accepted output depends on diameter segment count material handling tool setup hydraulic cycle transfer assembly inspection and surrounding process capacity.
Measure accepted segments and completed elbows per shift during representative trials rather than relying on general speed or changeover claims.
Common process risks
Wrong segment geometry mixed tools poor alignment unstable hydraulic pressure insufficient support or worn rollers can cause uneven edges distortion scratches cracks open seams difficult assembly or dimensional error.
Stop production and correct the segment tooling support or settings when any result falls outside acceptance criteria.
Safety and operator protection
The machine contains powered rotating tools hydraulic cylinders pinch and crush points stored pressure and sharp curved sheet edges. Guards interlocks emergency stops protected controls and energy isolation must follow the approved risk assessment.
Procedures must cover loading support tool setup trial cycles transfer unloading jam recovery cleaning and maintenance at both workstations.
Installation and site readiness
Confirm floor capacity leveling anchoring electrical and hydraulic requirements working clearance segment supports lighting noise control material routes lifting access and maintenance space.
The layout should prevent interference between the two stations and separate incoming segments finished parts rejected parts and operators.
Training maintenance and lifecycle support
Training should cover elbow drawings segment identification station selection tooling references controls support quality checks safe recovery isolation and daily inspection.
Preventive maintenance should address hydraulic oil filters hoses seals cylinders valves motors bearings shafts rollers guides guards sensors controls lubrication fasteners and emergency devices. Prepare approved wear parts and spares.
How to select the correct machine
Start with elbow and segment drawings diameter range angles radii segment counts materials thickness seam types quantities utilities floor plan handling method and quality criteria.
Selection should confirm station duties tooling range hydraulic force and travel supports controls guarding changeover maintenance service support and representative forming and assembly trials.
Technical information requiring verification
Verify compatible elbow diameters angles radii segment geometry material types thickness range seam operations tooling sets forming force roller speed cycle time output basis hydraulic data motor power electrical supply controls accuracy noise dimensions and total weight.
Confirm supports guards rotating part materials heat treatment maintenance requirements standards installation commissioning training warranty service scope spare parts and acceptance tests from approved documentation.
Publishing status
This page describes the machine category forming process and selection logic. Exact sizes thickness speed capacity tooling materials maintenance claims utilities standards and commercial commitments require an approved data sheet drawings and technical review before publication.
Questions we are asked
What is a hydraulic round duct elbow machine?
It uses hydraulic power and matched forming tools to prepare compatible edges on round duct elbow segments for assembly.
What is the benefit of two workstations?
They may hold different tools or support consecutive operations and reduce repeated changeover when the production mix and workflow are suitable.
Does it cut the elbow segments?
Not necessarily. Segment cutting is normally a separate process unless the approved machine configuration specifically includes it.
Does it close the final elbow seam?
That depends on the installed tooling and process. Final seam closing must be confirmed for the exact configuration.
How is elbow quality checked?
Check edge geometry roundness segment fit finished angle dimensions surface condition seam integrity and any required leakage test.
What information is needed for selection?
Provide elbow and segment drawings diameters angles radii materials thickness seam types quantities utilities layout and representative samples.
