Automatic HVAC Duct Flange Fabrication

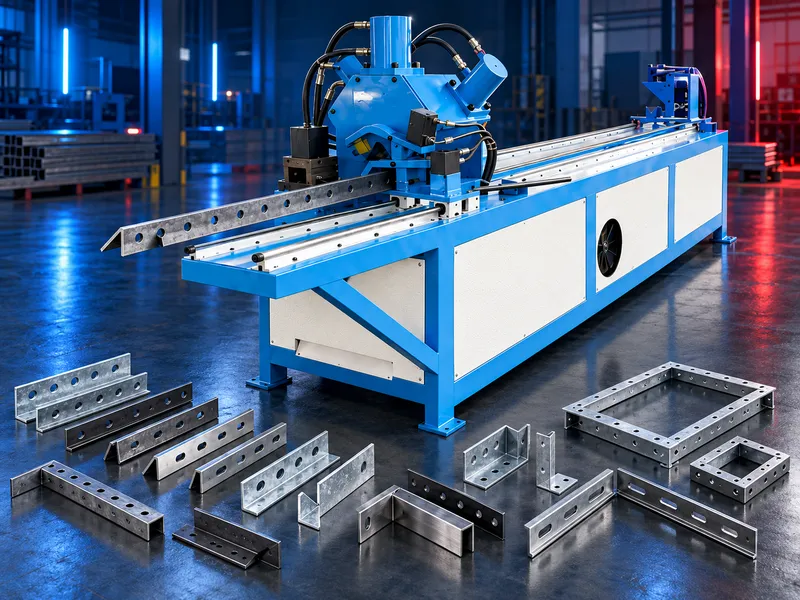

CNC Angle Steel Flange Punching & Cutting Production Line
Fully automatic CNC production line for feeding, positioning, punching and cutting angle steel used in HVAC duct flange fabrication. Designed to reduce manual handling and support repeatable, efficient flange production.
The CNC Angle Steel Flange Production Line automates the main preparation operations required for angle-steel duct flanges, combining controlled feeding, hole punching and cutting in one production workflow.
Servo-controlled feeding supports accurate positioning of the angle steel according to the programmed workpiece dimensions, hole spacing and number of holes. This helps reduce manual measuring and repeated handling between separate operations.
The line is intended for HVAC and rectangular duct fabrication where angle-steel flange components are required for duct assembly and connection. Machine configuration, supported angle sizes, punching capacity and cutting capacity should be confirmed against the exact production requirement.
The supplied product information also describes adjustable tooling and rolling components for different production requirements. Exact changeover time and supported profiles should be verified for the selected machine configuration before publication.
What it is for
- • Automatic production of angle-steel flanges for HVAC duct fabrication
- • Feeding and positioning of angle steel
- • Punching flange holes according to programmed spacing
- • Cutting or shearing angle steel to the required length
- • Repetitive production of duct flange components
- • Rectangular air-duct manufacturing and assembly
- • HVAC duct workshops and industrial duct production lines
Main Functions
- • Automatic angle-steel feeding
- • Servo-controlled positioning
- • CNC programming of workpiece dimensions
- • Programmable hole distance and hole quantity
- • Automatic punching
- • Automatic cutting / shearing
- • Integrated production sequence from feeding to finished flange component
- • Adjustable tooling or forming components according to machine configuration
How the Production Process Works
- 1. Load the angle steel Load the specified angle-steel profile into the feeding system according to the machine configuration.
- Enter the production data Program the required workpiece size, hole spacing and number of holes through the CNC control.
- Automatic servo feeding The feeding system positions the angle steel for the programmed operations.
- Punch the required holes The machine performs the programmed punching sequence at the required positions.
- Cut to length The angle steel is cut or sheared according to the programmed component length.
- Transfer to duct assembly
The completed flange components can then proceed to the next duct fabrication and assembly stages.
How to Choose the Correct Line
Define the angle-steel specification
Confirm the angle size, thickness, material grade and maximum required component length. These values determine the required feeding, punching and cutting capacity.
Define the punching requirement
Provide hole diameter, hole pattern, hole spacing and number of holes required for each flange component.
Define the production range
Identify the duct sizes and flange component lengths that will be produced, including the smallest and largest jobs.
Check automation and changeover needs
If several angle sizes or product families are produced, confirm the required tooling, adjustment method and expected changeover process.
Match the line to the duct-production workflow
Consider how the angle-flange line will connect with duct forming, cutting, corner assembly and final duct assembly operations.
Information Required for Machine Selection
- Angle-steel size and thickness
- Material grade
- Maximum flange component length
- Hole diameter
- Hole spacing and hole pattern
- Number of holes per component
- Required cutting / shearing method
- Required production output
- Range of duct sizes
- Available electrical supply
- Required integration with other HVAC duct equipment
Questions we are asked
What is a CNC angle steel flange production line?
It is an automated production system for feeding, positioning, punching and cutting angle steel used to manufacture flange components for HVAC and air-duct fabrication.
What operations can the line perform?
Based on the supplied product information, the main operations are automatic feeding, servo positioning, punching and cutting or shearing of angle steel.
Where is the machine mainly used?
It is mainly used in HVAC duct fabrication and rectangular air-duct production where angle-steel flanges are required for duct connection and assembly.
How is the machine programmed?
The supplied information states that the operator can enter workpiece size, hole distance and the number of holes required. The exact CNC interface depends on the selected configuration.
Does the machine use servo feeding?
The supplied product description specifies servo motors for accurate feeding dimensions.
Can it produce different flange sizes?
The production range depends on the supported angle-steel sizes, tooling and machine configuration. The exact range should be confirmed before selection.
Can the tooling be changed for different angle steel?
The supplied description refers to a quick-change mould design. The exact supported profiles and changeover time should be verified for the selected machine.
What information should I send before choosing a machine?
Send the angle-steel dimensions and thickness, material, required component lengths, hole diameter and spacing, number of holes, duct-size range and required production output.
