Precision Electrical Discharge Machining

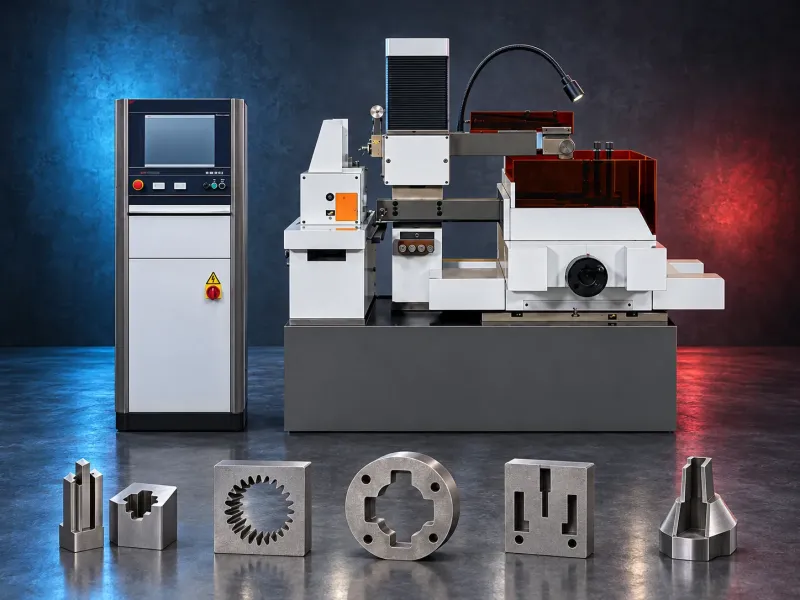

CNC Wire EDM Machines
Precision machining solutions for producing complex profiles in electrically conductive materials using a CNC-controlled wire electrode.
CNC Wire EDM machines remove material through controlled electrical discharges between a moving wire electrode and an electrically conductive workpiece. This non-contact process supports the production of complex profiles without direct mechanical cutting forces.
Machine selection depends on the workpiece material, dimensions, required tolerances, surface finish, taper requirements and production volume. Explore more CNC machine solutions or send your part drawing for a technical selection review.
What is CNC Wire EDM?
Wire Electrical Discharge Machining uses a thin wire as an electrode. The CNC system guides the wire along a programmed path while controlled electrical discharges remove material from the workpiece.
The process requires an electrically conductive workpiece. The exact material grade, cutting conditions and achievable results must be verified against the selected machine model.
Suitable applications
- Dies and mould components
- Punches and precision tooling
- Parts with complex profiles
- Components requiring narrow internal features
- Jobs involving hard, electrically conductive materials
- Straight and taper-cut profiles, where supported by the selected model
How to select the right Wire EDM machine
- 1. Define the workpiece material and its electrical conductivity.
- 2. Provide the part drawing, overall dimensions and cutting thickness.
- 3. Specify the required tolerances and surface finish.
- 4. Confirm straight-cut and taper-cut requirements.
- 5. Define the expected production volume and operating pattern.
- 6. Review axis travels, workpiece capacity, wire system and control features.
- 7. Confirm electrical supply, dielectric system, site and maintenance requirements.
Information required for technical selection
- Manufacturer and model under consideration
- Workpiece material and hardness
- Maximum part dimensions and weight
- Maximum cutting thickness
- Required accuracy and surface finish
- Required taper angle
- Wire type and diameter
- CAD drawing or representative part
- Production quantity and operating hours
- Available electrical supply and site conditions
Installation and lifecycle requirements
The electrical supply, grounding, dielectric-water system, workshop conditions, consumables, maintenance requirements, training and spare-parts scope must be confirmed from the official documentation for the selected model.
Send your drawing and production requirements to SAKKARY MACHINERY for a technical machine-selection review.
Questions we are asked
What materials can a CNC Wire EDM machine process?
Wire EDM requires electrically conductive materials. The exact material grade and suitable cutting conditions must be checked against the selected machine model.
What information is required to select a Wire EDM machine?
Provide the material, part drawing, dimensions, cutting thickness, tolerances, surface finish, taper requirements and expected production volume.
Can Wire EDM produce taper cuts?
Some Wire EDM configurations support taper cutting. The required angle and workpiece thickness must be compared with the verified capability of the selected model.
What utilities and site preparations are required?
Requirements may include electrical power, grounding, dielectric-water preparation and suitable workshop conditions. Final requirements must come from the official model documentation.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
