CNC Vertical Machining Center (VMC)
Vertical CNC machining solutions for milling, drilling, tapping and producing engineered metal components.

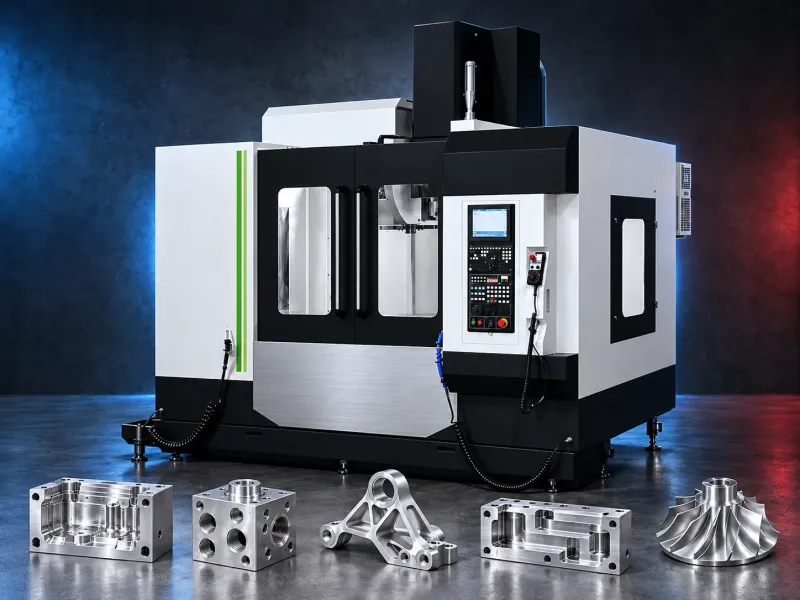

A CNC Vertical Machining Center (VMC) uses a vertically oriented spindle to perform controlled milling, drilling, tapping and boring operations on securely held workpieces.
Selecting the right machine depends on the material, workpiece dimensions and weight, required tolerances, surface finish, machining operations and production target. Explore our CNC machines or send your part drawing for technical selection.
Typical applications
- Face, pocket and slot milling
- Drilling, tapping and boring
- Machining bases, brackets, flanges and fixtures
- Producing machine components and spare parts
- Manufacturing mould, die and tooling components
- Prototype, single-part and repeat production, subject to the selected model
How to select a vertical machining center
- 1. Define the workpiece material, dimensions and weight.
- 2. Identify every required machining operation and setup.
- 3. Confirm the required axis travels, table size and load capacity.
- 4. Specify tolerances, surface finish and inspection requirements.
- 5. Match the spindle, tool interface and magazine capacity to the application.
- 6. Review the CNC control, coolant, chip removal and automation requirements.
- 7. Confirm production volume, utilities, installation space and service needs.
Key parameters to compare
- X, Y and Z axis travels
- Table dimensions and maximum load
- Spindle speed, power and torque
- Tool taper and tool magazine capacity
- Cutting feed and rapid traverse rates
- Positioning accuracy and repeatability
- CNC control and programming functions
- Coolant and chip-management systems
- Machine dimensions, weight and foundation requirements
- Electrical and compressed-air requirements
Values must be verified from the official documentation for the selected model.
Application limits
A vertical machining center is not a direct replacement for a CNC lathe or a large-format sheet-cutting machine. Multi-face machining, fourth-axis or five-axis operations, and unusually large or heavy components require a technical application review.
Request technical selection
Send the part drawing, material, dimensions, weight, tolerances, surface-finish requirements and production target. SAKKARY MACHINERY will review the application before recommending a machine configuration.
Questions we are asked
What operations can a CNC vertical machining center perform?
A suitable VMC can perform milling, drilling, tapping and boring operations. The available operations and limits depend on the selected model, tooling and configuration.
What information is needed to select a VMC?
Provide the part drawing, material, dimensions, weight, tolerances, surface finish, required operations and production volume.
Can a fourth or fifth axis be added?
This depends on the machine design, CNC control, table configuration and allowable load. Compatibility must be verified for the selected model.
Can a VMC machine every type of metal?
Material suitability depends on the spindle performance, machine rigidity, cutting tools, coolant and verified capabilities of the selected model.
Are installation and operator training included?
Installation, commissioning and training scope must be confirmed in the approved technical and commercial offer.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
