CNC Turning for Repeat Production
CNC Production Lathes
CNC turning solutions for repeat production of cylindrical components, with spindle, tooling, workholding and automation selected around the finished part.
A CNC production lathe performs programmed turning operations across repeated batches. Depending on its configuration, it may combine turning with drilling, milling, tapping and secondary operations.
The right production solution depends on the part drawing, material, starting stock, dimensions, tolerances, required operations, batch quantity and target operating pattern. Explore more CNC machine solutions or send your part details for technical review.
What is a CNC production lathe?

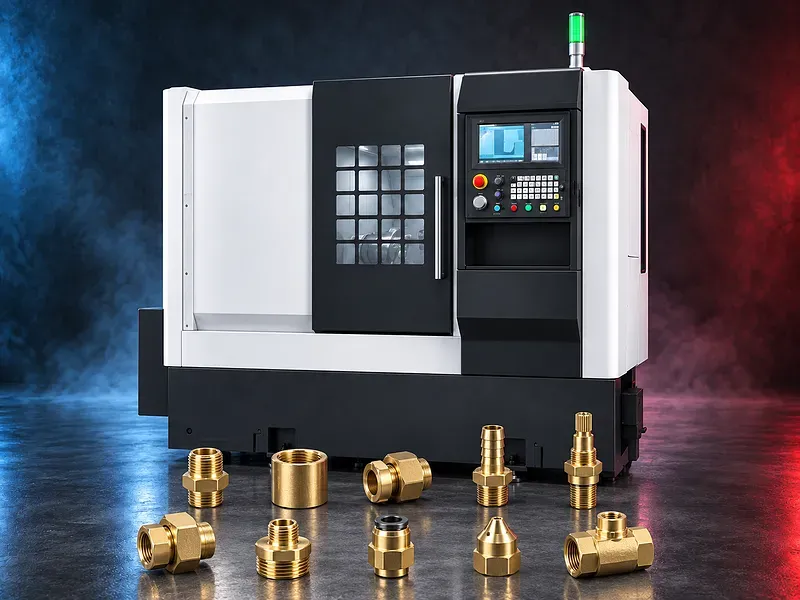

A CNC production lathe is a computer-controlled turning machine configured for repeat manufacturing. It rotates the workpiece while programmed tools perform turning, facing, boring, grooving, threading and other supported operations.
Suitable applications
- Shafts, pins and cylindrical components
- Bushes, sleeves and spacers
- Fittings and connectors
- Flanges, discs and pulleys
- Automotive and general engineering components
- Parts produced from bar stock
- Components loaded as individual blanks
- Repeated batches of standard or complex turned parts
Functional benefits
- Repeatable programmed machining cycles
- Automatic indexing of cutting tools
- Integration of several turning operations
- Bar-fed or chuck-loaded production configurations
- Availability of main and counter-spindle arrangements
- Availability of driven tools and additional axes
- Potential integration with bar feeders and parts catchers
- Potential integration with robots and automatic parts loaders
- Production monitoring and tool-management options on supported controls
How to select the right machine
- - Provide the finished-part drawing and raw-material form
- - Define the material and hardness
- - Confirm the maximum turning diameter and length
- - Specify whether production starts from bars, billets or castings
- - Define turning, facing, boring, grooving and threading operations
- - Determine whether drilling, milling or tapping is required
- - Review the need for a counter spindle, driven tools or Y-axis
- - Select the chuck, collet or workholding arrangement
- - Confirm bar-feeder or automatic-loader requirements
- - Define the required tolerances and surface finish
- - Provide the batch quantity and annual demand
- - Define the number of shifts and expected operating hours
- - Review inspection, part collection and traceability requirements
- - Complete a documented cycle study before approving output targets
Technical data to verify
- Maximum turning diameter and length
- Swing and work envelope
- Chuck, collet and bar capacity
- Spindle bore, speed, power and torque
- X-axis and Z-axis travels
- Available Y-axis and C-axis functions
- Main and counter-spindle configuration
- Turret type and tool capacity
- Driven-tool capacity and speed
- Rapid-traverse and feed rates
- Bar-feeder and loader compatibility
- Parts-catcher and conveyor options
- Positioning and repeatability values
- Machine dimensions, weight and utilities
Installation and lifecycle requirements
Electrical supply, compressed air, foundation, tooling, workholding, coolant, chip management, automation, inspection equipment, programming, operator training, preventive maintenance and spare-parts requirements must be confirmed from the official documentation for the selected model.
Send the part drawing, material, starting stock, dimensions, tolerances, operations, batch quantity and operating pattern to SAKKARY MACHINERY for technical machine selection.
Questions we are asked
What makes a CNC lathe suitable for production work?
Suitability depends on the required cycle, workholding, tool arrangement, automation, inspection method and ability to produce the part consistently under the intended operating pattern.
Can a production lathe machine complete a part in one setup?
Some configurations combine a counter spindle, driven tools and additional axes to perform multiple operations. The complete process must be verified against the part drawing.
Can the machine be loaded automatically?
Supported models may integrate with bar feeders, parts catchers, gantry loaders, robots or automatic parts loaders.
How is the expected production rate determined?
A cycle study must consider every machining operation, tool change, loading, unloading, inspection and expected interruption. Production output must not be approved from cutting time alone.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
