Specialized CNC Valve Machining
CNC Gate Valve Sealing Surface Machining Machine
Special-purpose CNC machine for machining sealing surfaces and related features on gate valve components, designed for efficient production of brass and stainless-steel valve parts within the verified size range.

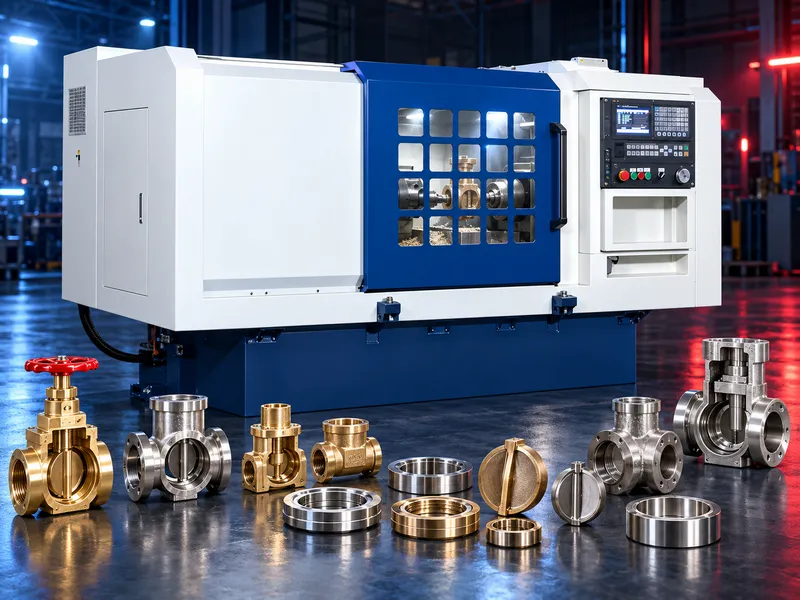

Designed for specialized machining of gate valve sealing surfaces, the machine uses coordinated power heads to process valve components in a controlled production cycle.
The supplied source describes left and right power heads working simultaneously, with a central pressure chamber arrangement, supporting efficient machining while maintaining the required dimensional relationship between machined surfaces.
The machine is intended for 1/2-inch to 2-inch stainless-steel and brass valve components according to the supplied product information. Exact workpiece geometry, tooling, machining operations and production configuration should be confirmed against the final machine specification before ordering.
Applications
- Gate valve component machining
- Valve sealing-surface machining
- Brass valve component production
- Stainless-steel valve component production
- Repeated production of standardized valve parts
Key Machine Concept
- Special-purpose CNC configuration for valve machining
- Left and right power heads arranged for simultaneous machining
- Central pressure chamber / workholding arrangement described in the supplied source
- Two paired production approaches are described for processing valve bodies and valve plates
- Designed for repeatable machining of valve-related sealing features
Suitable Materials and Size Range
- Brass valve components
- Stainless-steel valve components
- Supplied source range: 1/2 inch to 2 inches
Production Benefits
- Simultaneous machining from both sides where the workpiece and setup permit
- Specialized process layout for valve component production
- Reduced need to transfer the workpiece between separate machining operations where operations are combined in one setup
- CNC-controlled production for repeatable machining cycles
How to Select the Correct Machine
- Valve type and component drawing
- Material: brass or stainless steel
- Nominal valve size
- Required sealing-surface geometry
- Machining operations required
- Dimensional tolerances and surface-finish requirements
- Required production output
- Loading, unloading and automation requirements
Technical enquiry CTA
Send the valve component drawing, material, nominal size, required machining features, tolerances and production target to confirm the suitable machine configuration.
Questions we are asked
What is a CNC gate valve sealing surface machine?
It is a special-purpose CNC machine designed to machine sealing surfaces and related features on gate valve components in a controlled and repeatable production process.
What valve sizes are covered by the supplied source?
The supplied product information states a processing range of 1/2 inch to 2 inches. The exact compatible workpiece dimensions should be confirmed for the final machine configuration.
What materials can be processed?
The supplied source identifies stainless-steel and brass valve components.
How does the machine process the component?
The source describes left and right power heads operating simultaneously with a central pressure chamber arrangement. Exact tooling and cutting sequence depend on the configured workpiece and process.
Is the machine intended only for gate valves?
The supplied source specifically identifies gate valve sealing-surface machining. Suitability for other valve types should be verified separately from the exact machine specification and workpiece drawing.
What information is needed for machine selection?
Provide the valve drawing, material, nominal size, required machined features, tolerances, surface-finish requirement and production target.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
