Large-Part CNC Machining Solutions
CNC Double Column Machining Centers
Double-column CNC machining centers for milling large, long and heavy components, with configurations selected according to the workpiece and machining requirements.

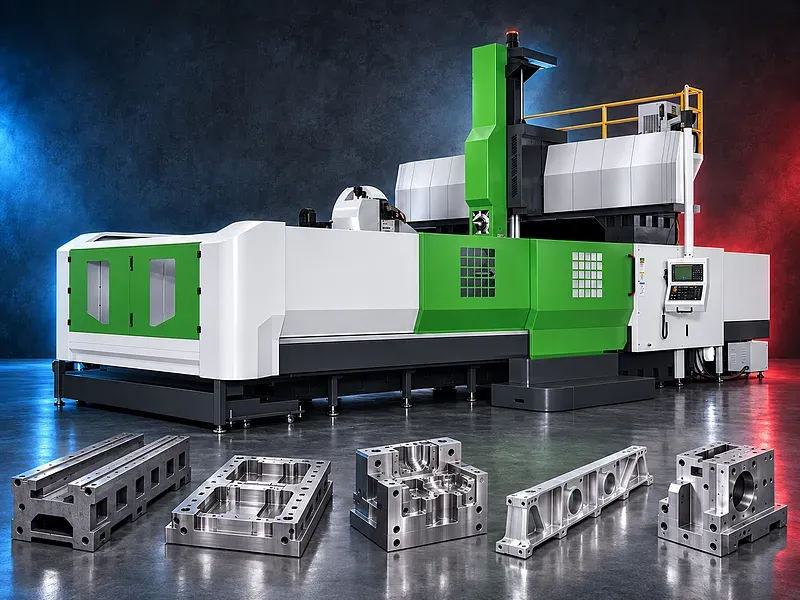

A CNC double-column machining center uses two vertical columns connected by a crossrail above the worktable. This bridge-style structure provides the working envelope required for machining large components, dies, moulds and machine frames.
Machine selection depends on the workpiece dimensions, weight, material, required accuracy, machining operations and tool-access directions. Explore more CNC machine solutions or send your part drawing for technical review.
What is a CNC double-column machining center?
A double-column machining center is a bridge-style CNC milling machine designed around two columns and a crossrail. Depending on its configuration, the table, bridge or machining head moves along the controlled axes to machine large workpieces.
Suitable applications
- - Large dies and moulds
- - Machine beds and structural components
- - Large plates and fabricated components
- - Energy and general engineering components
- - Heavy parts requiring milling, drilling or boring
- - Multi-face machining when supported by the selected configuration
- - Long workpieces within the verified table and travel capacity
- Functional benefits
- - Large working envelope
- - Support for large and heavy workpieces
- - Access across wide machining areas
- - Different table lengths and column-clearance options
- - Optional angular, universal or extension heads on supported models
- - Potential integration with automatic tool and attachment changers
- - Roughing and finishing capability according to spindle configuration
- How to select the right machine
- - Confirm the workpiece length, width, height and weight
- - Check the distance between columns and under the crossrail
- - Review the table dimensions and maximum load
- - Define the required X, Y and Z-axis travels
- - Confirm the material and expected metal-removal requirements
- - Select suitable spindle speed, power, torque and taper
- - Define milling, drilling, boring and tapping operations
- - Check whether multi-face machining or interchangeable heads are required
- - Review tool-magazine and attachment-storage requirements
- - Specify the required tolerances and surface finish
- - Assess workholding, probing, coolant and chip-removal requirements
- - Confirm foundation, lifting and workshop-space requirements
- Technical data to verify
- - Table dimensions and maximum load
- - Distance between columns
- - Distance from spindle nose to table
- - X, Y and Z-axis travels
- - Crossrail movement, where applicable
- - Spindle speed, power, torque and taper
- - Cutting-feed and rapid-traverse rates
- - Tool-magazine capacity
- - Available spindle heads and attachments
- - Positioning and repeatability values
- - Maximum workpiece envelope
- - Machine dimensions, weight and utility requirements
Installation and lifecycle requirements
The foundation, floor loading, electrical supply, compressed air, lifting equipment, coolant, chip management, tooling, workholding, training, maintenance and spare-parts requirements must be confirmed from the official documentation for the selected model.
Send the workpiece drawing, material, dimensions, weight, machining operations, tolerances and production quantity to SAKKARY MACHINERY for technical machine selection.
Questions we are asked
What parts can a CNC double-column machine process?
It is commonly used for large dies, moulds, machine structures, plates and heavy engineering components within the verified capacity of the selected model.
What dimensions are important when selecting the machine?
The workpiece length, width, height and weight must be compared with the table size, load capacity, distance between columns and axis travels.
Can the machine perform multi-face machining?
Some configurations support angular, universal or interchangeable heads for multi-face machining. This capability must be verified for the selected model.
What site preparations are required?
Requirements may include a reinforced foundation, suitable floor loading, electrical power, compressed air, lifting equipment and sufficient installation and maintenance space.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
