Precision Welding for Aluminium Profiles

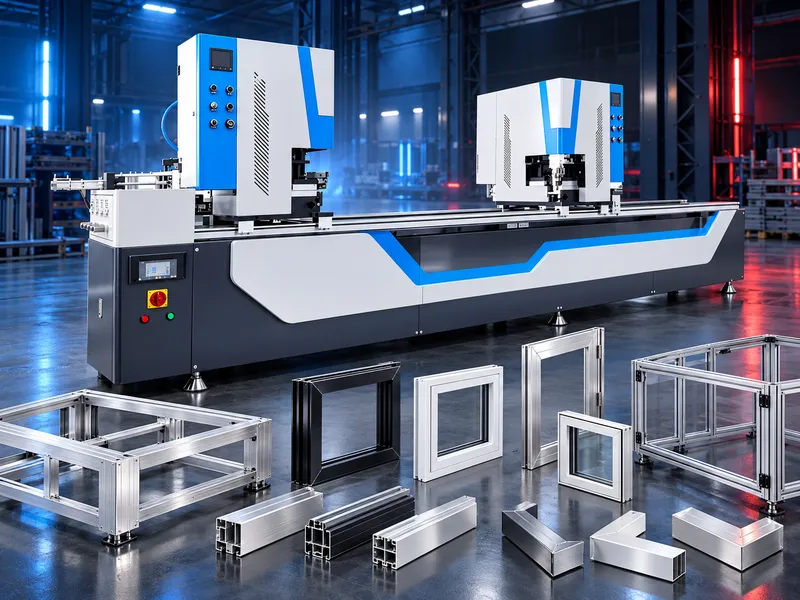

CNC Aluminium Profile Welding Machine for Industrial Frames
CNC-controlled welding equipment for joining aluminium profiles in industrial frame and profile fabrication, combining precision linear motion, a reinforced machine structure and controlled welding-head positioning for repeatable production.
Designed for aluminium profile and industrial frame fabrication, this CNC welding machine combines a heavy-duty steel chassis with controlled linear motion to support stable, repeatable profile joining.
The supplied configuration states HIWIN linear guides, high-torque drive systems, Schneider electrical components and SMC pneumatic valves, with a stated positioning accuracy of ±0.1 mm.
Machine suitability should be confirmed against the aluminium profile section, joint design, frame dimensions, welding process, required output and exact tooling/configuration before selection.
Applications
- Aluminium profile frame fabrication
- Industrial aluminium frame assemblies
- Profile joining for fabricated aluminium structures
- Repeat production requiring controlled welding-head positioning
Key Functions & Construction
- CNC-controlled welding-head positioning
- Reinforced, stress-relieved steel base frame
- HIWIN linear guides as stated in the supplied product information
- High-torque drive system for controlled linear movement
- Schneider electrical components as stated in the supplied product information
- SMC pneumatic valves as stated in the supplied product information
- Integrated protective shielding and emergency-stop functions
Precision & Motion
- Stated positioning accuracy: ±0.1 mm
- Linear motion system designed to support smooth, repeatable head movement
- Rigid machine base intended to reduce the effect of mechanical vibration on positioning
How to Select the Correct Machine
- Confirm aluminium profile type, dimensions and wall thickness
- Provide the required frame or finished-product dimensions
- Confirm the joint geometry and welding process required
- Define production volume and cycle requirements
- Confirm tooling, clamping and welding-head configuration
- Verify electrical, pneumatic and installation requirements from the exact manufacturer datasheet
Important Verification Before Publication
- Exact welding process and welding technology must be verified from the manufacturer datasheet.
- Maximum/minimum profile dimensions, wall thickness and frame size were not supplied.
- Welding power, speed, cycle time, machine dimensions, weight and utilities were not supplied.
- The statement about compliance with international safety standards requires documentary verification before publication as a compliance claim.
Questions we are asked
What is a CNC aluminium profile welding machine?
It is CNC-controlled equipment used to position and join aluminium profiles for frame and profile-fabrication applications. The exact welding method and machine configuration should be confirmed for the selected model.
What applications is this machine intended for?
It is intended for aluminium profile and industrial frame fabrication where repeatable positioning and controlled joining are required.
What positioning accuracy is stated?
The supplied product information states positioning accuracy of ±0.1 mm. This value should be confirmed against the exact manufacturer datasheet and its stated test conditions before final publication.
What linear-motion components are stated?
The supplied information states HIWIN linear guides and high-torque drive systems for welding-head movement.
What electrical and pneumatic components are stated?
The supplied information states Schneider electrical components and SMC pneumatic valves. Exact component models and availability should be verified for the selected configuration.
What information is needed to select the machine?
Provide the aluminium profile section and dimensions, wall thickness, frame size, joint design, required welding process, production target and available utilities.
Does the machine meet international safety standards?
The supplied description mentions protective shielding and emergency-stop functions, but any formal claim of compliance with a specific international safety standard should be published only after the relevant certification or declaration is verified.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
