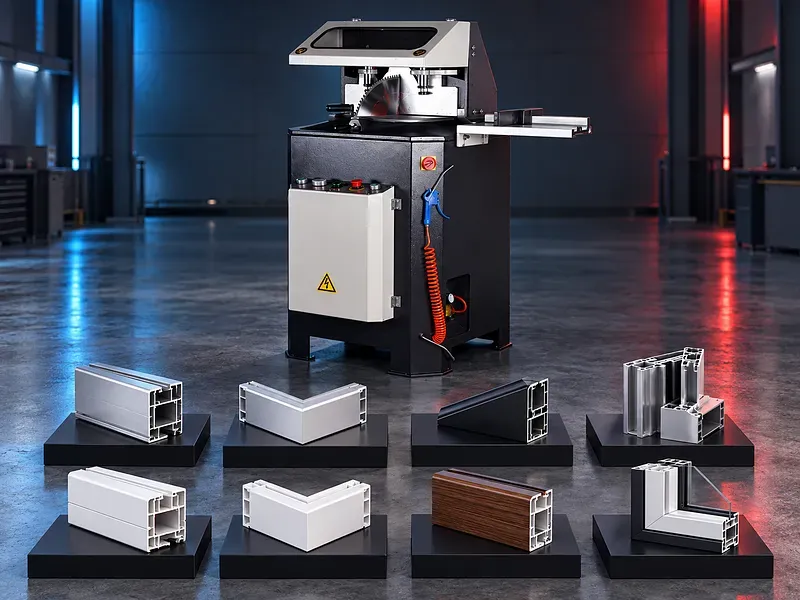

Automatic Up Cut Mitre Saw for Aluminium and PVC

What the machine does

The saw positions and clamps a prepared profile then raises the rotating blade through the programmed or selected cutting path. After the cut the blade returns to its guarded position before the clamps release according to the approved control sequence.

The result depends on profile support blade selection angle setting clamping feed motion lubrication chip control and inspection working together.

Up cut working principle

In an up cut arrangement the blade approaches the profile from below the support surface. The machine structure and guard isolate the blade before and after the cutting movement.

Blade rise speed cutting feed and return sequence must suit the material wall thickness profile shape and selected blade.

Straight and mitre cutting

The saw may perform square cuts and approved mitre angles when the head or reference system is set for those positions. Available angles and whether positioning is manual pneumatic or controlled vary by configuration.

Confirm angle range indexing method locking repeatability and calibration using the actual profiles and joint drawings.

Aluminium profile applications

Approved aluminium extrusions for windows doors facades partitions furniture and industrial assemblies may be cut when their alloy temper geometry and wall thickness suit the blade and machine envelope.

Thin walls chambers thermal breaks surface finishes and protective films require suitable support clamping blade geometry and lubrication.

PVC profile applications

Approved rigid PVC profiles may be cut for window door and related fabrication when the blade tooth form speed support and clamping prevent melting cracking or deformation.

Profiles with reinforcement seals films or inserted components require a specific process review because the combined materials can change cutting behavior.

Profile support and positioning

The profile should rest against stable fences and supports so the cut reference remains square and the section does not twist. Long stock may require roller tables length stops measuring systems or automatic feeding.

Confirm infeed and outfeed length support height reference side and handling of short offcuts and long flexible profiles.

Automatic clamping

Clamps secure the profile before blade movement and should release only after the blade returns to the safe position. Clamp layout and pressure must prevent movement without crushing hollow or finished sections.

Verify horizontal and vertical clamping pressure adjustment contact pads sensors and compatibility with the full product family.

Blade selection

Blade diameter bore tooth count tooth geometry kerf material and maximum approved speed must match the saw and profile. Aluminium and PVC may require different blade designs even when processed on the same machine.

Use only approved sharp balanced blades and follow a documented sharpening replacement and inspection plan.

Lubrication cooling and chip control

Aluminium cutting may require an approved minimum quantity lubricant or another specified method to control heat chip adhesion and surface finish. PVC cutting needs a process that avoids excessive heat and material smearing.

Confirm lubricant compatibility application points collection method chip extraction and cleaning routine for the selected materials.

Cut quality and inspection

Acceptance should define cut length angle squareness burr level edge finish deformation and joint fit from the finished product drawing. The first piece should be measured before batch production continues.

Blade condition profile variation support and temperature can influence the result even when the machine setting is unchanged.

Cycle and productivity

Practical output includes loading positioning clamping cutting return unloading measurement and material handling. Automation can reduce cycle variation but does not remove the need for correct preparation and inspection.

Evaluate productivity with representative profiles cut lists angle changes batch sizes offcut rules and operator tasks.

Safety and operator protection

The machine contains a high speed saw blade automatic clamps sharp profiles and ejected chips. Guards interlocks emergency stops safe control functions and eye hearing and hand protection should follow the approved risk assessment.

Safe procedures must cover loading angle setup blade changes trial cuts offcut removal cleaning jam recovery and maintenance with verified isolation.

Installation and site readiness

Site preparation should confirm a level floor electrical supply compressed air when required lubrication or cooling arrangements chip extraction lighting and sufficient space for the longest profile and handling equipment.

Install infeed and outfeed supports at the correct height and provide safe routes for raw profiles finished parts and scrap.

Training maintenance and lifecycle support

Training should cover profile references angle settings clamps blade inspection lubrication quality checks safe recovery and daily care. Operators should recognize blade noise vibration heat and finish changes before damage develops.

Preventive maintenance should address blades spindle bearings belts or drives guides clamps cylinders sensors lubrication extraction guards and safety devices. Prepare an approved spare parts and consumables list.

How to select the correct machine

Start with profile drawings materials maximum cross sections stock lengths required angles cut list volumes batch sizes tolerances surface protection and downstream joining. Then define supports feeding measuring lubrication extraction utilities and acceptance samples.

Selection should be based on representative profiles and verified cuts rather than blade diameter or an unsupported cycle time alone.

Technical information requiring verification

Verify the cutting envelope for every required angle profile length and minimum offcut. Also verify blade diameter bore speed motor power angle positions feed system clamping pressure cut accuracy cycle time lubrication extraction compressed air electrical load dimensions and weight.

Confirm included blades supports stops measuring devices guarding installation commissioning training warranty service scope spare parts and the agreed acceptance tests.

Publishing status

This page describes the machine category and selection logic. Exact capacities angles speeds accuracy productivity features options standards and commercial commitments require an approved data sheet and technical review before publication.
