Integrated Cutting, Drilling & Milling for Aluminium Profiles

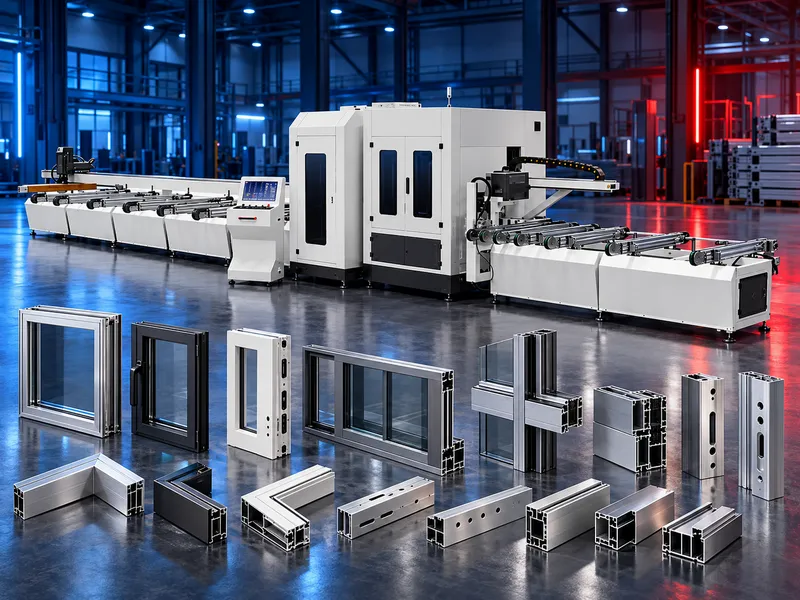

CNC Aluminium Profile Cutting, Drilling & Milling Center
Integrated CNC machining center for aluminium door, window and industrial profiles, combining four-side drilling and milling, ±45° cutting, laser marking and automatic label application in a connected production workflow.
Designed for broken-bridge aluminium door and window profiles and selected industrial aluminium profiles, this CNC cutting center combines several processing stages in one production cell.
The supplied product information states that the machine can drill and mill four sides of the profile, process features such as glue-injection holes, pin holes, screw holes and fixing holes, then perform ±45° angle cutting before the finished profile exits through the discharge table.
Laser perforation marking and automatic label application support profile identification, classification and downstream production management. The cutting center is also described as capable of connecting with multiple door and window design software systems. Exact software compatibility and interface requirements should be confirmed before publication and installation.
Applications
• Aluminium door and window profile processing
• Broken-bridge / thermal-break aluminium profile fabrication
• Selected industrial aluminium profile processing
• Integrated machining before frame assembly
• Production lines requiring identification and downstream data handling
Integrated Processing Functions
• Four-side drilling and milling of aluminium profiles
• Machining of glue-injection holes, pin holes, screw holes and fixing holes
• Laser-line or laser perforation marking as stated in the supplied information
• ±45° angle cutting after drilling and milling operations
• Automatic label application after cutting
• Discharge-table output after the programmed machining sequence
Production Workflow
• Feed the aluminium profile
• Drill and mill the required profile features
• Apply laser marking where required
• Perform the programmed ±45° cutting operation
• Automatically apply the printed identification label
• Output the processed profile for classification and subsequent production
Software & Data Integration
• Designed for connection with door and window design software
• Automatic labels can support scan-code based profile identification and production management
• Exact supported software, file formats, communication protocol and integration scope must be verified for the supplied machine configuration
How to Select the Correct Machine
• Confirm profile type, cross-section and maximum workpiece dimensions
• Provide required hole, slot, milling and cutting operations
• Confirm required cutting angles and machining sequence
• Define production volume and automation requirements
• Confirm label, barcode or QR-code workflow requirements
• Verify compatibility with the customer’s door/window design software
• Confirm exact spindle, saw, axis, electrical, pneumatic and installation specifications from the manufacturer datasheet
Questions we are asked
What is a CNC aluminium profile cutting center?
It is an integrated CNC production machine that combines multiple profile-processing operations such as drilling, milling and cutting within one controlled workflow.
Can the machine process aluminium profiles on four sides?
According to the supplied product information, the equipment can drill and mill four sides of the profile.
What profile features can it machine?
The supplied information lists glue-injection holes, pin holes, screw holes, fixing holes and laser-line related processing among the intended operations. Exact tooling and machining capability should be confirmed for the selected configuration.
Can it perform angle cutting?
The supplied information states that the profile can be cut at ±45° after drilling and milling operations.
Does it support profile identification after cutting?
Yes. The supplied configuration describes automatic label application after cutting to support profile classification and later production data management.
Can it connect to door and window design software?
The supplied information states that the cutting center can connect with multiple door and window design software systems. The exact supported software and integration method must be verified before implementation.
What information is needed before selecting the machine?
Provide the aluminium profile type and dimensions, required machining operations, cutting angles, production volume, identification workflow and the design software that needs to be integrated.
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
