CNC Hydraulic Corner Crimping for Aluminium Profiles

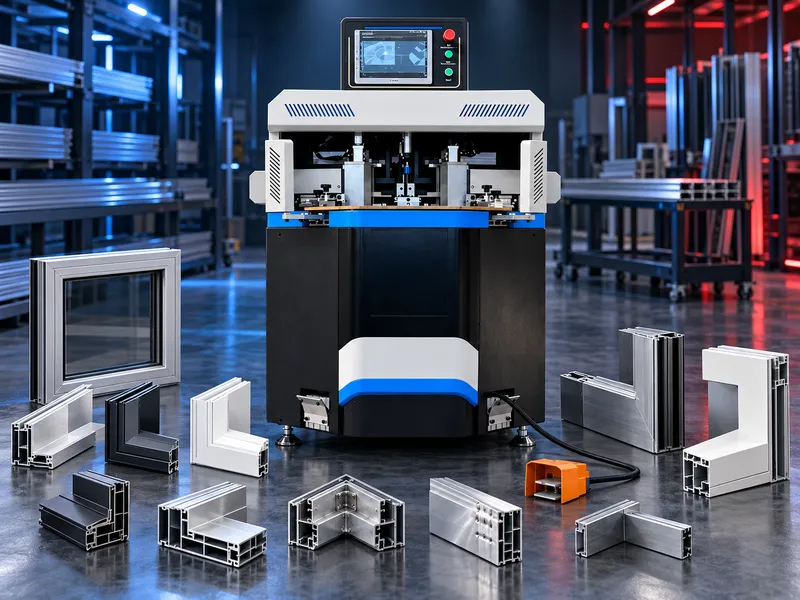

CNC Aluminium Profile Corner Crimping Machine
CNC-controlled hydraulic corner crimping machine for joining aluminium profiles used in doors, windows and industrial profile fabrication, with synchronized crimping knives, adjustable tooling and foot-pedal operation.
Designed for aluminium profile corner assembly, the machine combines CNC positioning with a hydraulic crimping station to support consistent profile joining in door, window and industrial aluminium fabrication. The supplied configuration specifies positioning accuracy of ±0.1 mm for the crimping knives. Synchronized dual-knife movement is intended to support aligned corner joints while reducing profile distortion during crimping. Adjustable tooling allows the machine to accommodate different profile sizes, subject to the verified tooling range and profile geometry. Foot-pedal operation keeps the operator’s hands available for profile positioning and alignment. Final machine selection should be confirmed against the aluminium profile section, wall thickness, corner-joint design, required crimping position and production volume.
- Applications — aluminium door and window frames, architectural aluminium systems and industrial aluminium profile fabrication.
- CNC Positioning — intelligent CNC control with touch-screen interface for setting and positioning the crimping operation.
- Hydraulic Crimping — industrial hydraulic station provides the force required for profile corner joining.
- Synchronized Dual Knives — linked knife movement supports simultaneous crimping on both sides of the corner joint.
- Adjustable Tooling — tooling can be set for different profile heights and widths, within the machine’s verified working range.
- Foot-Pedal Operation — hands-free actuation supports profile positioning during clamping and crimping.
- Specified Positioning Accuracy — ±0.1 mm, according to the supplied product information.
- Selection Inputs — profile drawing, material/alloy, section dimensions, wall thickness, joint geometry and required output should be reviewed before machine selection.
Questions we are asked
What is a CNC aluminium profile corner crimping machine?
It is a hydraulic profile-joining machine used to crimp and assemble aluminium profile corners, commonly in aluminium door, window and frame fabrication. What operations does this machine perform? Its primary function is corner crimping and joining of aluminium profiles using hydraulic force and positioned crimping knives. Other operations should not be assumed unless confirmed for the exact machine configuration. What accuracy is specified? The supplied product information states ±0.1 mm positioning accuracy for the crimping knives. The final assembled-joint accuracy also depends on profile preparation, tooling setup, material and operator alignment. Can it work with different aluminium profile sizes? The supplied information describes adjustable universal tooling for different profile heights and widths. The exact minimum and maximum profile dimensions must be verified from the manufacturer’s technical data. Why are synchronized crimping knives used? Synchronized knife movement helps apply the crimping action in a coordinated way on the corner joint, supporting alignment and reducing the risk of uneven deformation. What information is needed before selecting the machine? Provide the aluminium profile drawing or sample, alloy/material, section dimensions, wall thickness, corner-joint design, required crimping positions and expected production volume
Tell us the part you need to make
An engineer reads every request. Usually the same working day.
