Fiber Laser Sheet and Tube Cutting Machine

One platform for sheet and tube cutting

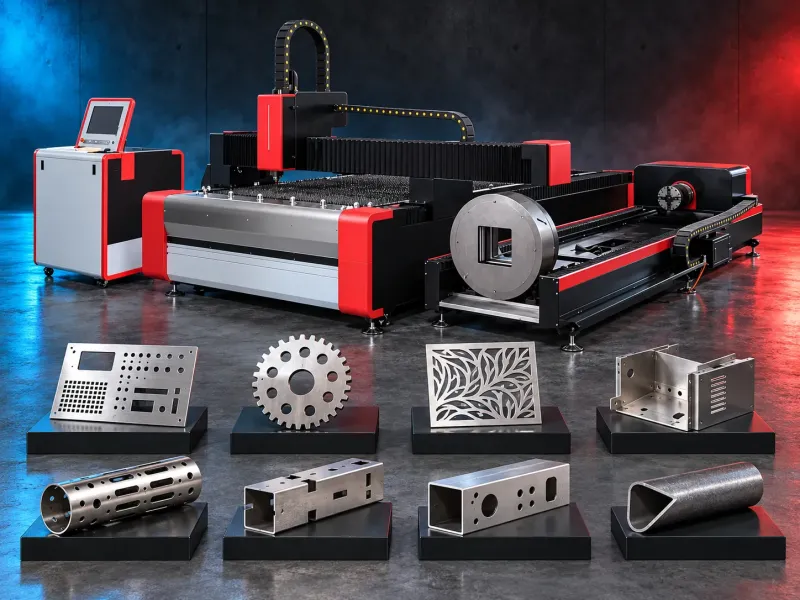

The machine combines flat sheet laser cutting with rotary tube and profile cutting. The sheet cutting area processes programmed two dimensional contours, while the tube unit rotates and positions the workpiece for end cuts, holes, slots, notches, and other supported features.

The layout, loading method, work zones, cutting head, chuck arrangement, software, and automation vary by manufacturer and model. Every capability must be confirmed from the approved catalog for the exact machine.

Suitable production applications

Potential applications include metal furniture, display systems, light structural fabrications, enclosures, cabinets, frames, racks, vehicle components, agricultural equipment, fitness equipment, HVAC products, and general metalworking assemblies.

Suitability depends on the actual material, sheet or tube geometry, thickness, surface condition, tolerances, joint design, edge requirement, part size, and production volume.

Sheet cutting capability

The flat sheet area may process suitable carbon steel, stainless steel, aluminum, copper, brass, and other compatible metals when supported by the verified laser source and cutting process.

Sheet format, maximum load, supported thickness, cutting quality, speed, gas selection, and automatic loading are model specific and must be confirmed before publication or quotation.

Tube and profile cutting capability

Depending on the verified configuration, the rotary unit may process round tubes, square tubes, rectangular tubes, oval sections, and selected open or special profiles.

The supported section range, wall thickness, raw length, finished length, weight, chuck system, tail length, support method, and ability to cut open or irregular profiles require separate confirmation.

Potential production value

A suitable combined machine may support a production mix that includes both flat parts and tubular parts while reducing the need for two separate laser platforms. It can also reduce handling and secondary operations for compatible designs.

Actual productivity, utilization, cost per part, floor space benefit, material use, and labor requirement depend on the product mix, nesting, loading, cutting data, setup time, automation, and production schedule.

How to choose the correct machine

Provide the finished part drawings and CAD files, material grades, sheet formats, sheet thicknesses, tube and profile types, outer dimensions, wall thicknesses, raw lengths, finished lengths, cut features, tolerances, quantities, and target output.

The review should also cover laser power, sheet bed size, maximum sheet load, tube range, part weight, chuck arrangement, supports, remnant length, loading and unloading, cutting gases, extraction, software, nesting, inspection, and future product requirements.

Technical information to verify

The approved manufacturer documents must confirm the brand, model, laser source, laser power, supported materials, sheet range, tube range, thickness capacity, workpiece weight, cutting head, axes, accuracy, repeatability, speed, and stated test conditions.

They must also confirm automatic loading options, unloading, sorting, chuck count, supports, weld seam detection, probing, bevel capability, three dimensional cutting, software, extraction, cooling, gas requirements, electrical supply, compressed air, machine dimensions, machine weight, and safety systems.

Materials and sample cutting

Every material grade, coating, surface condition, reflectivity, thickness, required edge quality, and downstream process needs technical review. A material family should not be presented as suitable unless supported by the selected machine documentation.

Sample cutting may be required to confirm cut quality, burr condition, heat effect, gas use, feature accuracy, fit, and downstream welding or forming performance.

Utilities and site requirements

Site planning should cover machine footprint, sheet and tube material flow, loading access, unloading space, foundation, electrical supply, grounding, cooling, cutting gases, compressed air, fume extraction, ventilation, fire precautions, guarding, and software connectivity.

Utility values and environmental limits must come from the exact model documents and the approved installation plan.

Operation and lifecycle support

The production plan should include application review, installation, commissioning, operator training, programming, process setup, preventive maintenance, cleaning, optics care, nozzle and consumable control, spare parts planning, and service access.

The exact supply scope, training, maintenance, spare parts, warranty, and service commitments require confirmation in the approved commercial and technical offer.

Limitations and alternative solutions

A combined sheet and tube machine is not automatically the best choice for every production plan. High volume sheet production or high volume tube production may justify a dedicated system with specialized automation.

The machine must not be assumed to support every material, sheet size, tube section, thickness, bevel, three dimensional feature, tapping process, or automatic handling function. The complete production route should be reviewed before selection.

Technical review and next step

Send the sheet and tube drawings together with material specifications, dimensions, thicknesses, tolerances, quantities, required edge quality, and target output.

SAKKARY MACHINERY will assess the production mix and identify whether a combined machine or separate dedicated machines provide the more suitable solution.
