Enclosed Fiber Laser Sheet and Tube Cutting Machine

One enclosed platform for sheet and tube cutting

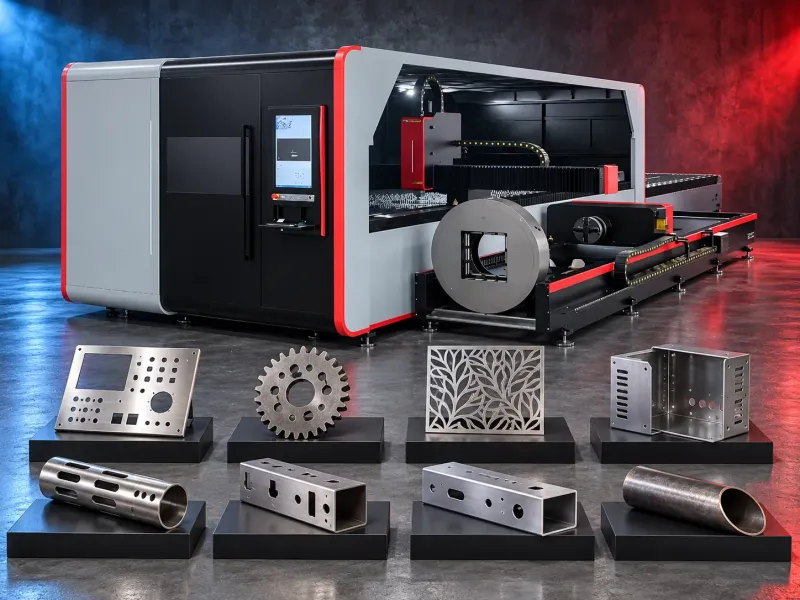

The machine combines flat sheet laser cutting with rotary tube and profile cutting. The sheet area produces programmed two dimensional contours, while the rotary unit positions the workpiece for end cuts, holes, slots, notches, and other supported features.

The layout, work zones, enclosure, access doors, viewing panels, cutting head, chuck arrangement, loading system, software, and automation vary by manufacturer and model. Every function must be confirmed from approved documentation.

Purpose of the protective enclosure

A verified enclosure can help separate personnel from laser radiation, rapid axis movement, sparks, and the active cutting zone. It can also support controlled extraction of process fumes and dust.

The enclosure does not replace the approved risk assessment, monitored access, interlocks, guarding, extraction, fire precautions, operator procedures, personal protective equipment, or local requirements.

Suitable production applications

Potential applications include metal furniture, display systems, enclosures, cabinets, frames, racks, machinery covers, HVAC products, vehicle components, agricultural equipment, fitness equipment, brackets, plates, and general fabricated assemblies.

Suitability depends on the actual material, sheet or tube geometry, thickness, surface condition, tolerances, feature size, joint design, edge quality, downstream forming or welding, and production volume.

Sheet cutting capability

The flat sheet area may process suitable carbon steel, stainless steel, aluminum, copper, brass, and other compatible metals when supported by the verified laser source, cutting head, gas system, and process data.

Sheet format, maximum load, supported thickness, cutting quality, speed, gas selection, table system, and automatic loading are model specific and require confirmation.

Tube and profile cutting capability

Depending on the verified configuration, the rotary unit may process round tubes, square tubes, rectangular tubes, oval sections, and selected open or special profiles.

The supported section range, wall thickness, raw length, finished length, weight, chuck system, tail length, support method, and ability to process open or irregular profiles require separate confirmation.

Potential production value

A suitable combined system may support a product mix that includes flat parts and tubular components while reducing the need for two separate laser platforms. It may also reduce handling and some secondary operations for compatible designs.

Actual productivity, utilization, accuracy, material use, setup time, gas consumption, cost per part, and labor requirement depend on the product mix, nesting, loading, cutting data, automation, and acceptance criteria.

How to choose the correct machine

Provide the finished part drawings and CAD files, material grades, sheet sizes, sheet thicknesses, tube and profile types, outer dimensions, wall thicknesses, raw lengths, finished lengths, feature details, tolerances, quantities, and target output.

The review should also cover laser power, sheet bed size, maximum sheet load, tube range, part weight, chuck arrangement, supports, remnant length, table design, loading and unloading, cutting gases, extraction, cooling, software, inspection, floor space, and future product requirements.

Technical information to verify

The approved manufacturer documents must confirm the brand, model, laser source, laser power, supported materials, sheet range, tube range, thickness capacity, workpiece weight, cutting head, axes, accuracy, repeatability, speed, and stated test conditions.

They must also confirm the table system, chuck count, supports, automatic loading options, unloading, sorting, weld seam detection, probing, bevel capability, three dimensional cutting, software, nesting, extraction, cooling, gas requirements, electrical supply, compressed air, dimensions, weight, and foundation requirements.

Enclosure extraction and safety systems

The exact enclosure construction, access control, door monitoring, interlocks, laser viewing windows, warning indicators, emergency stops, fire precautions, beam protection, and machine safety classification must be verified from the exact model documents.

Fume and dust extraction must be selected for the sheet and tube materials, coatings, cutting gases, laser power, duty cycle, and local requirements. Extraction and filtration performance claims require documented evidence.

Loading automation and material flow

Depending on the verified model, the sheet area may use a single bed, exchange tables, manual loading, automatic loading, unloading, sorting, or sheet storage integration. The tube unit may use manual loading, semi automatic loading, or bundle loading.

Automation should be chosen from material sizes and weights, product mix, batch frequency, operator availability, shift pattern, floor space, remnant strategy, unloading needs, and required traceability.

Quality and sample approval

The production plan should define datums, contour dimensions, cut position, hole and slot dimensions, length, angle, burr limits, dross, heat effect, edge quality, surface protection, part identification, and inspection method.

Critical components may require sample cutting, dimensional inspection, forming trials, welding trials, joint fitting, and assembly checks before production approval.

Installation and lifecycle support

Site planning should cover machine footprint, sheet and tube material flow, loading access, unloading space, foundation, electrical supply, grounding, cooling, cutting gases, compressed air, extraction, ventilation, fire precautions, guarding, software connectivity, and operator training.

The exact supply scope, commissioning, training, preventive maintenance, consumables, optics care, spare parts, warranty, and service commitments require confirmation in the approved technical and commercial offer.

Limitations and alternative solutions

An enclosed combined machine is not automatically the best choice for every production plan. High volume sheet production or high volume tube production may justify dedicated systems with specialized automation.

The machine must not be assumed to support every material, sheet size, tube section, thickness, bevel, three dimensional feature, tapping process, or automatic handling function. The complete production route should be reviewed before selection.

Technical review and next step

Send the sheet and tube drawings with material specifications, dimensions, thicknesses, tolerances, quantities, edge requirements, automation needs, enclosure requirements, and target output.

SAKKARY MACHINERY will review the production mix, required processes, safety plan, utilities, and site conditions before recommending a combined configuration or separate dedicated machines.
