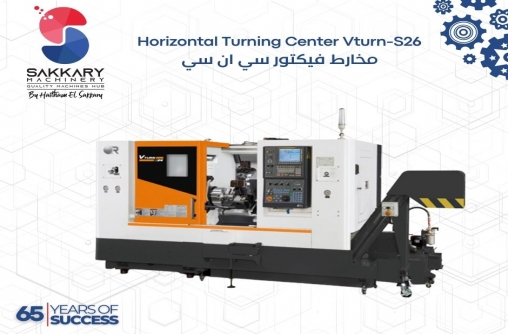

Horizontal Turning Center

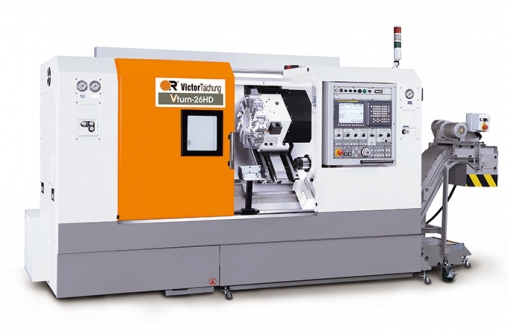

Vturn-16/20/26Cost-effective model for reliable heavy cutting!
- Genuine 45° slant bed for minimum distance from Z-axis ball screw to the tool tip.
- Box slideways with hardness HRC 55 for heavy cutting.
- Kitagawa® hydraulic 6" /8" /10" chuck is offered as standard (except Vturn-26HD)
- Programmable tailstock and chip conveyor is offered as standard.
- Only wide range spindle motor Fanuc αPi is installed to offer high cutting force at low rpm.
- Z-axis ball screw diameter 40mm for heavy cutting and high reliability.
- Maximum turning length 610mm for Vturn-16/20 and 1090mm for Vturn-26/110.
- Special LSB option on Vturn-26 for bar capacity 91mm/2500rpm.
