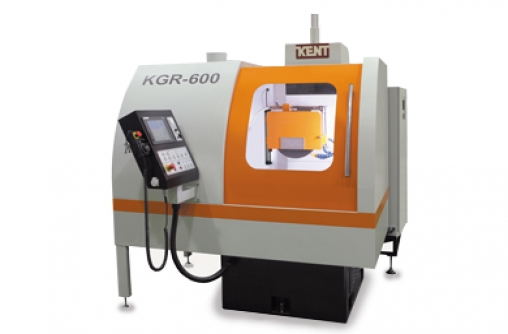

Sakkary offers a large bandwidth of machines, from low-cost entry-level models to high-end machines with a variety of control options.

Structure
-Castings are made of high quality ribbed cast iron, which have been heat-treated to achieve extreme rigidity. Major castings are all box-type designed for excellent rigidity and strength. Compact designed bed and columns enable the whole machine to be shipped in a regular container, and also much saving on ocean and inland freight.
3-Axes Mechanism
-The “SP” grade linear guides are used for Y/Z axis, and there are four blocks on each axis that can provide 0.001mm vertical/cross-feed graduation.-Vertical/cross-feed driven by AC-servo-motor.-The hydrostatic rotary table with very low friction force and high rigidity, driven by servo motor with belt.
Spindle
-Cartridge and flange type designed, powered with a powerful motor and supported by 3 sets of #7016 CP4 super precision angular contact ball bearings.
Controller
-The well-known control system Mitsubishi PLC and servo motor. Ergonomically designed operation panel, with 10” colored touch screen for grinding data input through dialog pages. We use MPG instead of hand-wheel for precision and easy usage. Y-axis is equipped with “HEIDENHAIN” linear scale for a real closed loop feedback system.
Dressing and compensation
-The table mounted wheel dresser is integrated into automatic grinding cycle. The dressing result is perfectly paralleled to table surface for super precision grinding applications.
Lubrication
-Auto lubricating system ensures the slide ways and ball-screws are well-lubricated.Coolant systems-Coolant tank type 250liter, 2bar, 80L/min
Name Specifications
